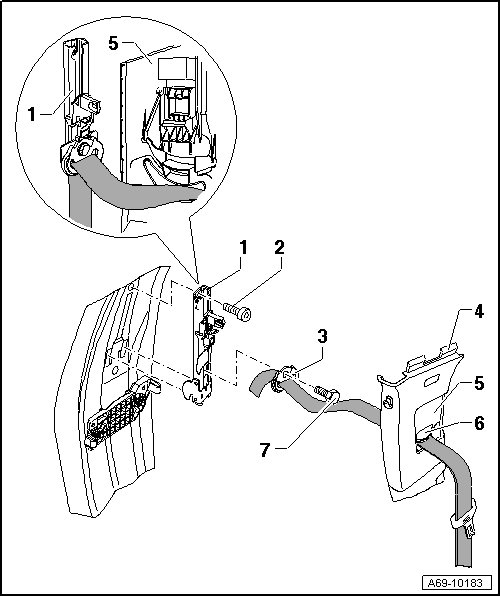

Front Belt Height Adjuster, Component Overview

Front Belt Height Adjuster, Component Overview





1 Seat Belt Height Adjuster

• Removing and Installing, refer to => [ Front Seat Belt Height Adjuster ] Service and Repair

2 Bolt

• 21 Nm

• If seat belt height adjuster is being removed for accident repairs, replace screw

3 Belt Relay

4 B-pillar Trim

5 Slide

6 Button

7 Bolt

• 55 Nm

• If belt relay and seat belt height adjuster are being removed for accident repairs, replace screw
