Charge Air Pressure Sensor

Charge Air Pressure Sensor

Removing

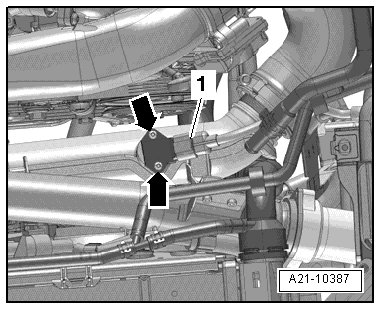

- Disconnect the connector - 1 -.






- Remove the bolts - arrows - and remove the charge air pressure sensor (G31) from the air duct pipe.

Installing

Install in reverse order of removal. Note the following:

• Tightening specifications, refer to => [ Air Duct Pipes and Air Duct Hoses Overview, Vehicles Built through 05.10 ] Air Duct Pipes and Air Duct Hoses Overview, Vehicles Built Through 05.10.

• Replace O-ring.
