Charge Air Pressure Sensor

Charge Air Pressure Sensor

Removing

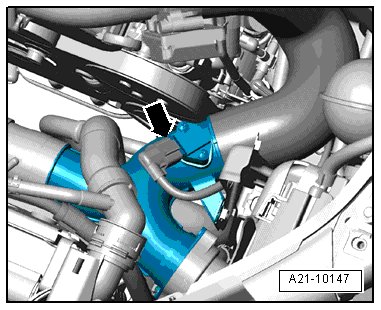

- Disconnect electrical connector - arrow -.






- Remove the bolts and the charge air pressure sensor (G31).

Installing

Install in reverse order of removal. Note the following:

• Tightening specifications, refer to => [ Charge Air Cooler Overview ] Charge Air Cooler Overview.

• Replace O-ring.
