Diagram 64/23 (Tracks 295-308)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

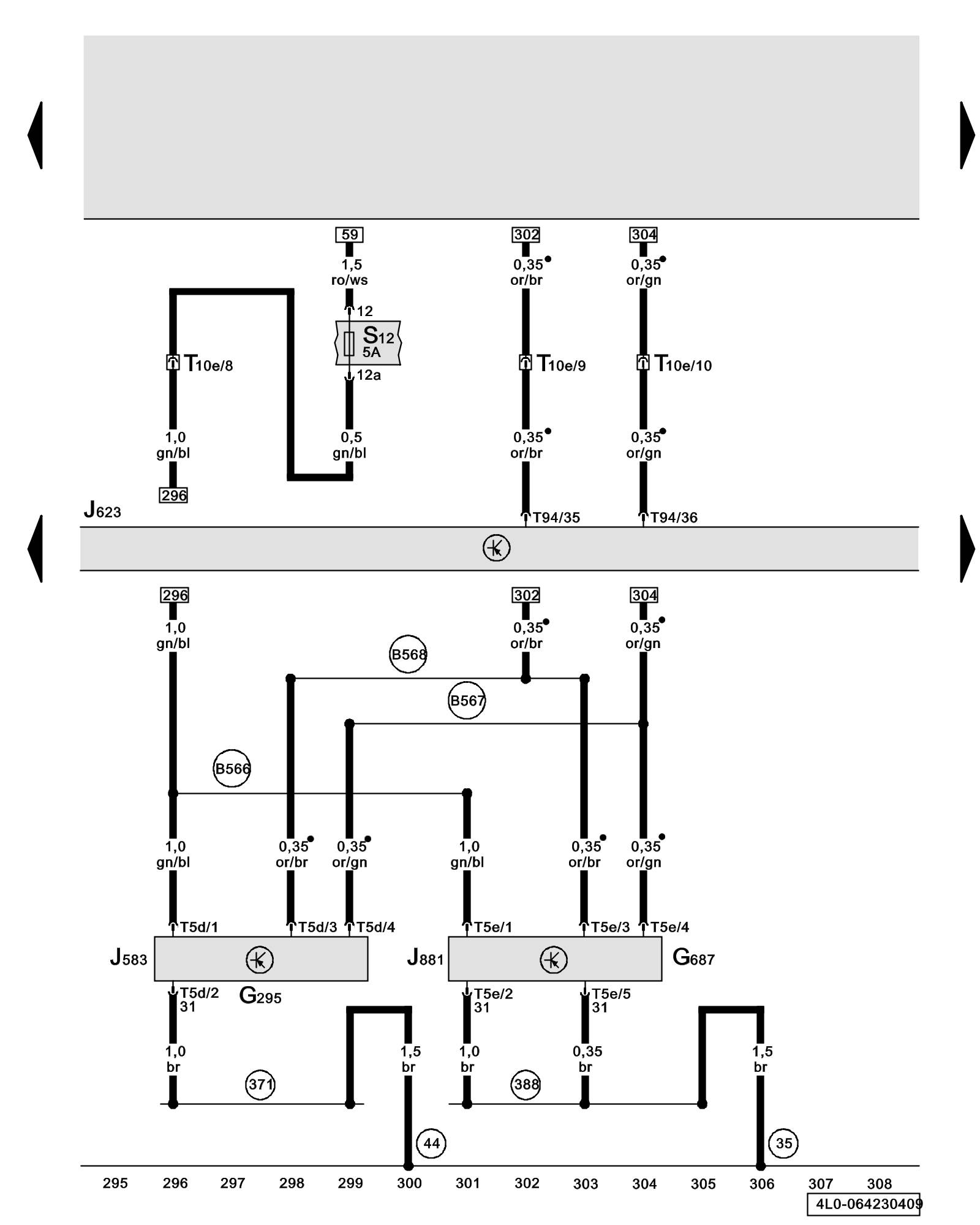

Engine Control Module (ECM), NOX Sensor Control Module, NOX Sensor 2 Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G295 - NOX Sensor Locations

G687 - NOX Sensor 2 Locations

J583 - NOX Sensor Control Module Locations

J623 - Engine Control Module (ECM) Overview Of Control Modules

J881 - NOX Sensor 2 Control Module Locations

S12 - Fuse (on fuse/relay panel)

T5d - 5-Pin Connector, black, on NOX sensor control module

T5e - 5-Pin Connector, black, on NOX sensor 2 control module

T10e - 10-Pin Connector, green, connector station electronics box plenum chamber Overview of Connector Stations

T94 - 94-Pin Connector, black, on engine control module (ECM) Locations

(35) - Ground Connection (below front passenger's seat) Locations

(44) - Ground Connection (on left lower A-pillar) Locations

(371) - Ground Connection 6 (in main wiring harness)

(388) - Ground Connection 23 (in main wiring harness)

(B566) - Connection 33 (in main wiring harness)

(B567) - Connection 34 (in main wiring harness)

(B568) - Connection 35 (in main wiring harness)

• - CAN-Bus (data wire)

Previous Diagram 64/22 (Tracks 281-294)

Next Diagram 64/24 (Tracks 309-322)
