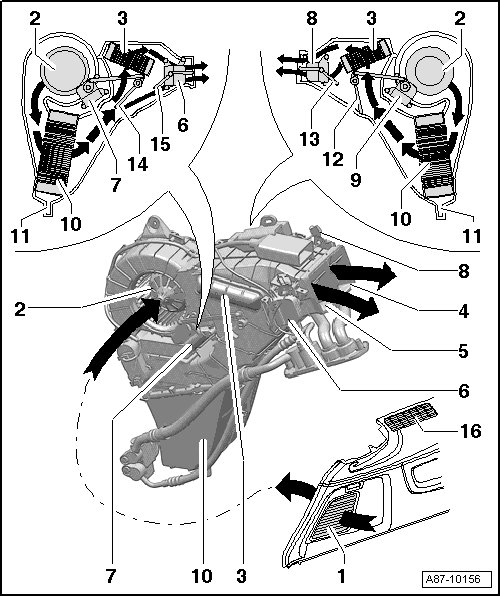

Air Duct In Rear Heating and A/C Unit

Air Duct in Rear Heating and A/C Unit





1 Air intake grill in left side luggage compartment side trim

• Air intake must not be obstructed by any objects.

• Removing and installing left side luggage compartment side trim.

• Versions of left side luggage compartment side trim vary, no air intake grille is installed on vehicles without rear heating & A/C unit

2 Rear Fresh Air Blower (V80)

3 Heater core

4 Air outlet to left side in air channel on rear heating & A/C unit

5 Air outlet to right side in air channel on rear heating & A/C unit

6 Right Rear Air Flap Motor (V240)

7 Right Rear Temperature Flap Motor (V314)

8 Left Rear Temperature Flap Motor (V313)

9 Left Rear Air Flap Motor (V239)

10 Evaporator housing with evaporator

11 Evaporator housing drain

12 Left rear temperature flap

• Shown in "Heat" position

13 Left rear air flap

• Shown in "Open" position

14 Right rear temperature flap

• Shown in center position

15 Right rear air flap

• Shown in "Open" position

16 Air outlet grille for forced air extraction vents

• Air outlet must not be obstructed by any objects.
