Air Duct In Front Heating and A/C Unit

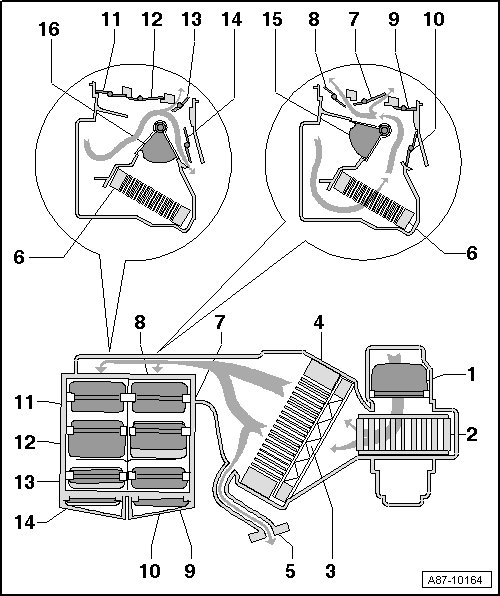

Air Duct in Front Heating and A/C Unit





1 Air recirculation/fresh air flap

2 Fresh Air Blower (V2)

3 Dust and pollen filter

4 Evaporator

5 Air duct to glove compartment cooling system

• Not present on all vehicles, optional equipment

6 Heater core

7 Flap for right instrument panel vent

• On "Basic" version A/C system, flaps (items " 7", "9", "12" and "13") are operated by a control motor via common shafts and lever.

• On "Comfort" version A/C system, this flap alone is operated by a control motor

• The flap is shown in the "approx. 50 % open" position.

8 Flap for right defroster vent

• The flap is shown "approx. 50 % open" in the cross-sectional diagram.

• Flaps for left and right defroster vents are moved via the shaft of a control motor.

9 Flap for right center vent

• On "Basic" version A/C system, flaps (items " 7", "9", "12" and "13") are operated by a control motor via common shafts and lever.

• On "Comfort" version A/C system, this flap alone is operated by a control motor

• The flap is shown in the "closed" position.

• Also for right-side indirect ventilation (via air ducts in instrument panel to front window) on vehicles with "Comfort" version A/C system

• Also for vents in right rear center console in vehicles without rear A/C system

10 Flap for right footwell vent

• On "Basic" version A/C system, flaps (items " 10" and "14") are operated by a control motor via common shafts.

• On "Comfort" version A/C system, this flap alone is operated by a control motor

• Also for footwell vent under front passenger's seat in vehicles without rear A/C system

• The flap is shown in the "closed" position.

11 Flap for left defroster vent

• This flap is shown in the "closed" position.

• Flaps for left and right defroster vents are moved via the shaft of a control motor.

12 Flap for left instrument panel vent

• On "Basic" version A/C system, flaps (items " 7", "9", "12" and "13") are operated by a control motor via common shafts and lever.

• On "Comfort" version A/C system, this flap alone is operated by a control motor

• The flap is shown in the "closed" position.

13 Flap for left center vent

• On "Basic" version A/C system, flaps (items " 7", "9", "12" and "13") are operated by a control motor via common shafts and lever.

• On "Comfort" version A/C system, this flap alone is operated by a control motor

• The flap is shown in the "approx. 50 % open" position.

• Also for left-side indirect ventilation (via air ducts in instrument panel to front window) on vehicles with "Comfort" version A/C system

• Also for vents in left rear center console in vehicles without rear A/C system

• Air flow to indirect ventilation is regulated via its own control motor on "Comfort" version A/C system.

14 Flap for left footwell vent

• On "Basic" version A/C system, flaps (items " 10" and "14") are operated by a control motor via common shafts.

• On "Comfort" version A/C system, this flap alone is operated by a control motor

• Also for footwell vent under driver's seat in vehicles without rear A/C system

• The flap is shown in the "closed" position.

15 Right temperature flap

• On "Basic" version A/C system, flaps (items " 15" and "16") are operated by a control motor via common shafts.

• On "Comfort" version A/C system, this flap alone is operated by a control motor

• The flap is shown in the "heat" position

16 Left temperature flap

• On "Basic" version A/C system, flaps (items " 15" and "16") are operated by a control motor via common shafts.

• On "Comfort" version A/C system, this flap alone is operated by a control motor

• The flap is shown in the "cool" position
