Crankshaft, Cylinder Block

Special Tools






Special tools, testers and auxiliary items required

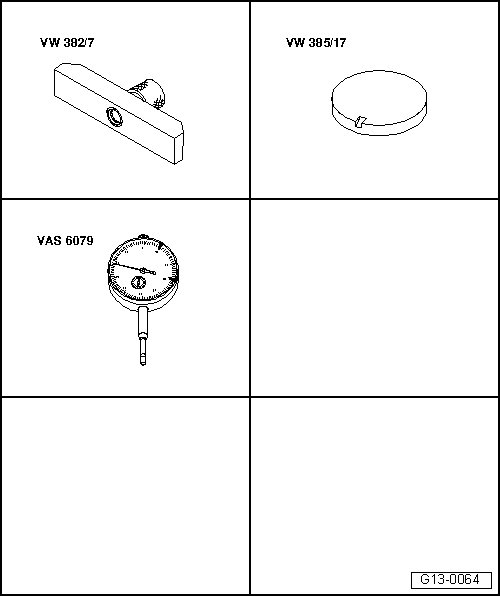

• Measuring Bar (VW 382/7) from Special Socket and Measuring Tools (VW 382)

• Magnetic Plate 50 mm Dia. (VW 385/17) from Universal Measuring Tool (VW 385)

• Dial Gauge 0-10 mm (VAS 6079)

• Dial Gauge Holder (VW 387)






• Torx(R) Socket T60 (T40087)

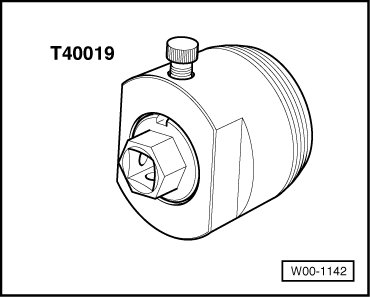

• Oil Seal Extractor (T40019)

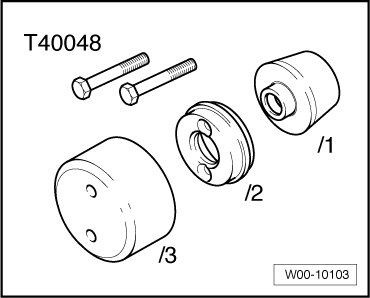

• Assembly Device (T40048) with Assembly Adapter (T40048/4)






• Spanner Wrench (3212)

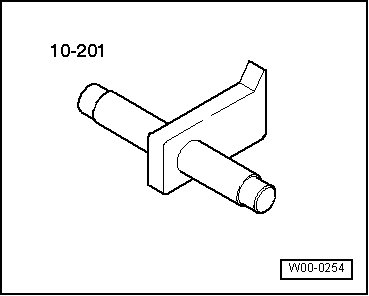

• Counter Hold Tool (10 - 201)

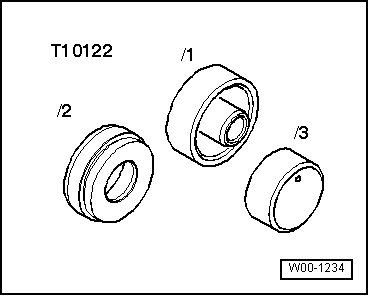

• Assembly Tool (T10122)






• Pulling Hook (T20143)
