Timing Mechanism Drive Chain

Timing Mechanism Drive Chain

Special tools, testers and auxiliary items required

• Locking Pin (T40071)

• 3.3 mm diameter drill bit

Removing

• Transmission removed.

- Remove the camshaft timing chain. Refer to => [ Camshaft Timing Chains ] Camshaft Timing Chains.

- Remove the power take-off drive chain. Refer to => [ Power Take-Off Drive Chain ] Power Take-Off Drive Chain.

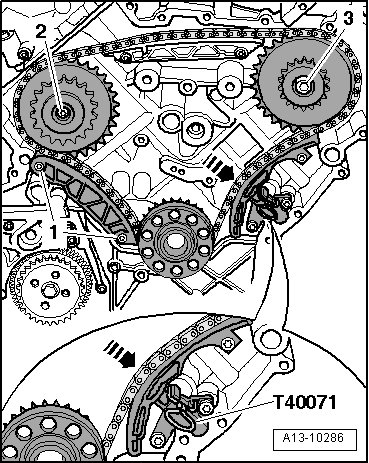

- Press the drive chain tensioner rail in the direction of the - arrow - and secure the chain tensioner with a (T40071).






Risk of destroying due to reversed running direction on a used drive chain.

• Mark drive chain running direction with arrows using paint for reinstallation.

- Remove the bolts - 1 - and the guide rail.

- Remove the bolts - 2 - and - 3 - and remove the chain sprockets and drive chain.

Installing

Install in reverse order of removal. Note the following:

• For the correct tightening specifications, refer to => [ Timing Mechanism Drive Chain Overview ] Timing Mechanism Drive Chain Overview.

- Install the power take-off drive chain, refer to => [ Power Take-Off Drive Chain ] Power Take-Off Drive Chain.

- Install the camshaft timing chains, refer to => [ Camshaft Timing Chains ] Camshaft Timing Chains.

- Fill engine oil and check oil level.
