Balance Shaft Overview

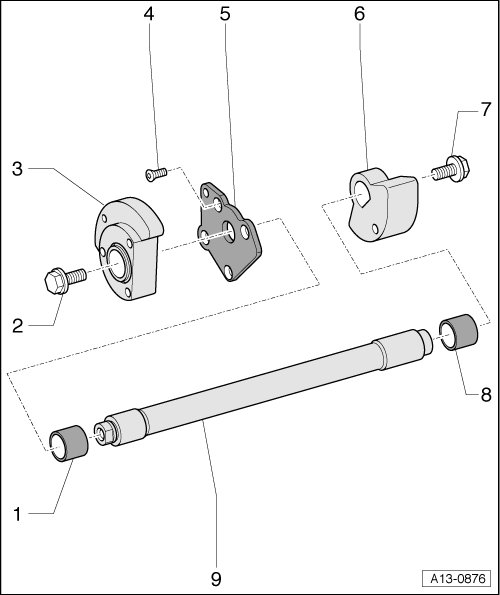

Balance Shaft Overview






1 Friction Bearing

2 Bolt

• 60 Nm

• When loosening or tightening, us the diesel injection pump locking pin (3359) as a counterhold tool

3 Balance Shaft Transmission Side

4 Bolt

• 9 Nm

• Insert with locking compound; Locking compound, refer to the Parts Catalog.

5 Bearing End Bracket

6 Balance Shaft Belt Pulley Side

7 Bolt

• 60 Nm

• When loosening or tightening, us the diesel injection pump locking pin (3359) as a counterhold tool

8 Friction Bearing

9 Balance Shaft

• Removing and installing, refer to => [ Balance Shaft ] Balance Shaft
