Crankshaft, Measuring Axial Play

Crankshaft, Measuring Axial Play

Special tools, testers and auxiliary items required

• Dial Gauge Holder (VW 387)

• Dial Gauge 0-10 mm (VAS 6079)

Procedure

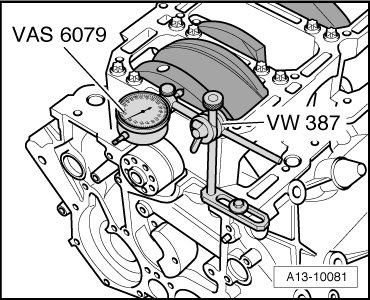

- Install the (VAS 6079) with the (VW 387) on the cylinder block as shown in the illustration.






- Place the dial gauge against the crankshaft counterweight.

- Press the crankshaft against the dial gauge by hand and set the gauge to "0".

- Press the crankshaft off the dial gauge and read the measurement.

Axial clearance:

• New: 0.090 to 0.215 mm

• Wear limit: 0.280 mm
