Engine: Application and ID

Engine Number

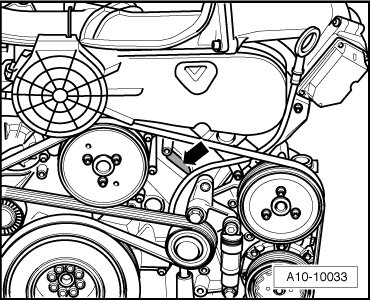

• The engine number ("engine code" and "serial number") is located on the left side in the front under the high pressure pump toothed belt - arrow -.






• In addition, a sticker with "engine code" and "serial number" is affixed to the intake manifold.

• Engine codes beginning with "C" are four-digit.

• The first 3 digits of the engine code stand for displacement and the mechanical structure of the engine. They are stamped in the cylinder block, including the serial number.

• The fourth digit describes the engine output and torque and depends on the engine control module.

• The engine number is covered by the ribbed belt idler roller. Remove the ribbed belt idler roller. Refer to => [ Left Ribbed Belt Idler Roller ] Left Ribbed Belt Idler Roller.

• The 4-digit engine code is on the type plate, vehicle data label and engine control module.
