Diagram 64/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

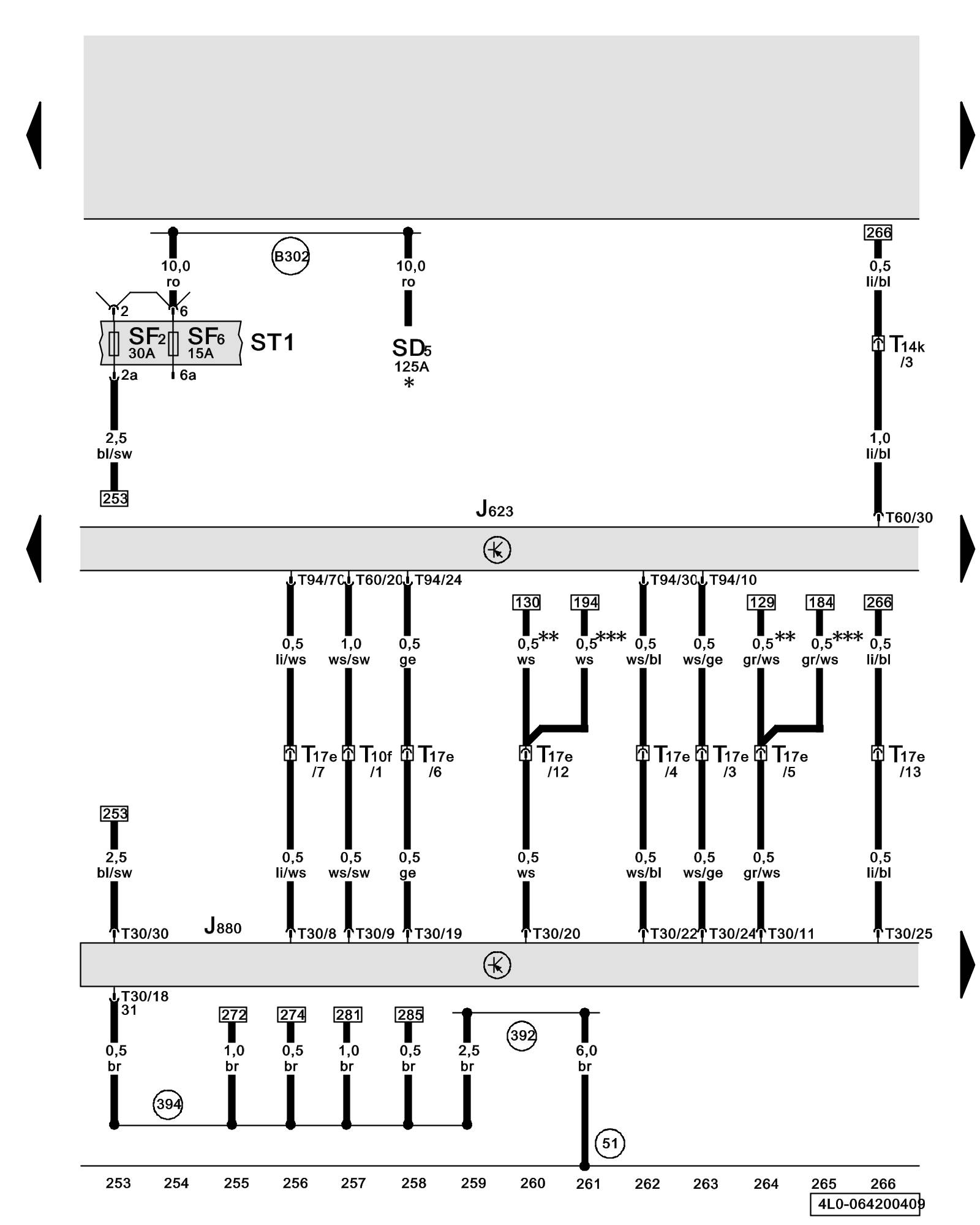

Engine Control Module (ECM), Reducing Agent Metering System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine Control Module (ECM) Overview Of Control Modules

J880 - Reducing Agent Metering System Control Module Locations

SD5 - Fuse 5 (on fuse panel D) Overview Of Fuses

SF2 - Fuse 2 (on fuse panel F) Overview Of Fuses

SF6 - Fuse 6 (on fuse panel F) Overview Of Fuses

T10f - 10-Pin Connector, red, connector station electronics box plenum chamber

T14k - 14-Pin Connector, black, in right engine compartment

T17e - 17-Pin Connector, brown, connector station electronics box plenum chamber Overview of Connector Stations

T30 - 30-Pin Connector, black, on reducing agent metering system control module

T60 - 60-Pin Connector, black, on engine control module (ECM) Locations

T94 - 94-Pin Connector, black, on engine control module (ECM) Locations

(51) - Ground Connection (in luggage compartment, right) Locations

(392) - Ground Connection 27 (in main wiring harness)

(394) - Ground Connection 29 (in main wiring harness)

(B302) - Plus Connection 6 (30) (in main wiring harness)

* - Relay and fuse carrier below driver's seat

** - Through October 2008

*** - From November 2008

Previous Diagram 64/19 (Tracks 239-252)

Next Diagram 64/21 (Tracks 267-280)
