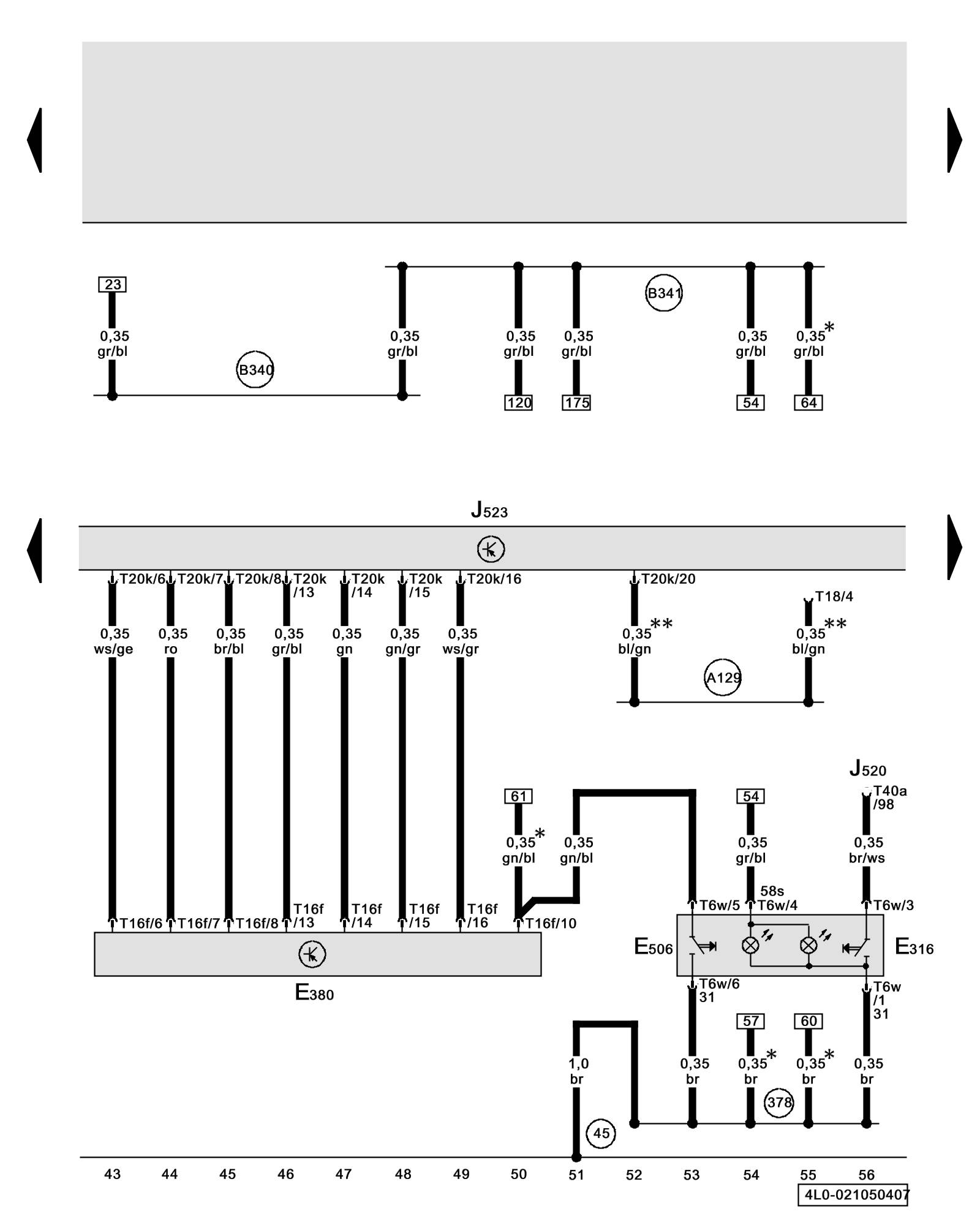

Diagram 21/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front Information Display Control Head Control Module, Multimedia Control Head, Glove Compartment Button, Display Unit Button





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E316 - Glove Compartment Button

E380 - Multimedia Control Head

E506 - Display Unit Button

J520 - Vehicle Electrical System Control Module 2 Overview Of Control Modules

J523 - Front Information Display Control Head Control Module Component Locations

T6w - 6-Pin Connector, black, on side switch module

T16f - 16-Pin Connector, brown, on multimedia control head

T18 - 18-Pin Connector, black, behind glove compartment

T20k - 20-Pin Connector, red, Connector A, on front information display control head control module

T40a - 40-Pin Connector, black, on vehicle electrical system control module 2

(45) - Ground Connection (behind instrument panel, center) Locations

(378) - Ground Connection 13 (in main wiring harness)

(A129) - Mute Connection (in instrument panel wiring harness)

(B340) - Connection 1 (58s) (in main wiring harness)

(B341) - Connection 2 (58s) (in main wiring harness)

* - USA, from June 2007

** - Models with cellular telephone preparation (9ZD)

Previous Diagram 21/4 (Tracks 29-42)

Next Diagram 21/6 (Tracks 57-70)
