Diagram 21/20 (Tracks 253-266)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

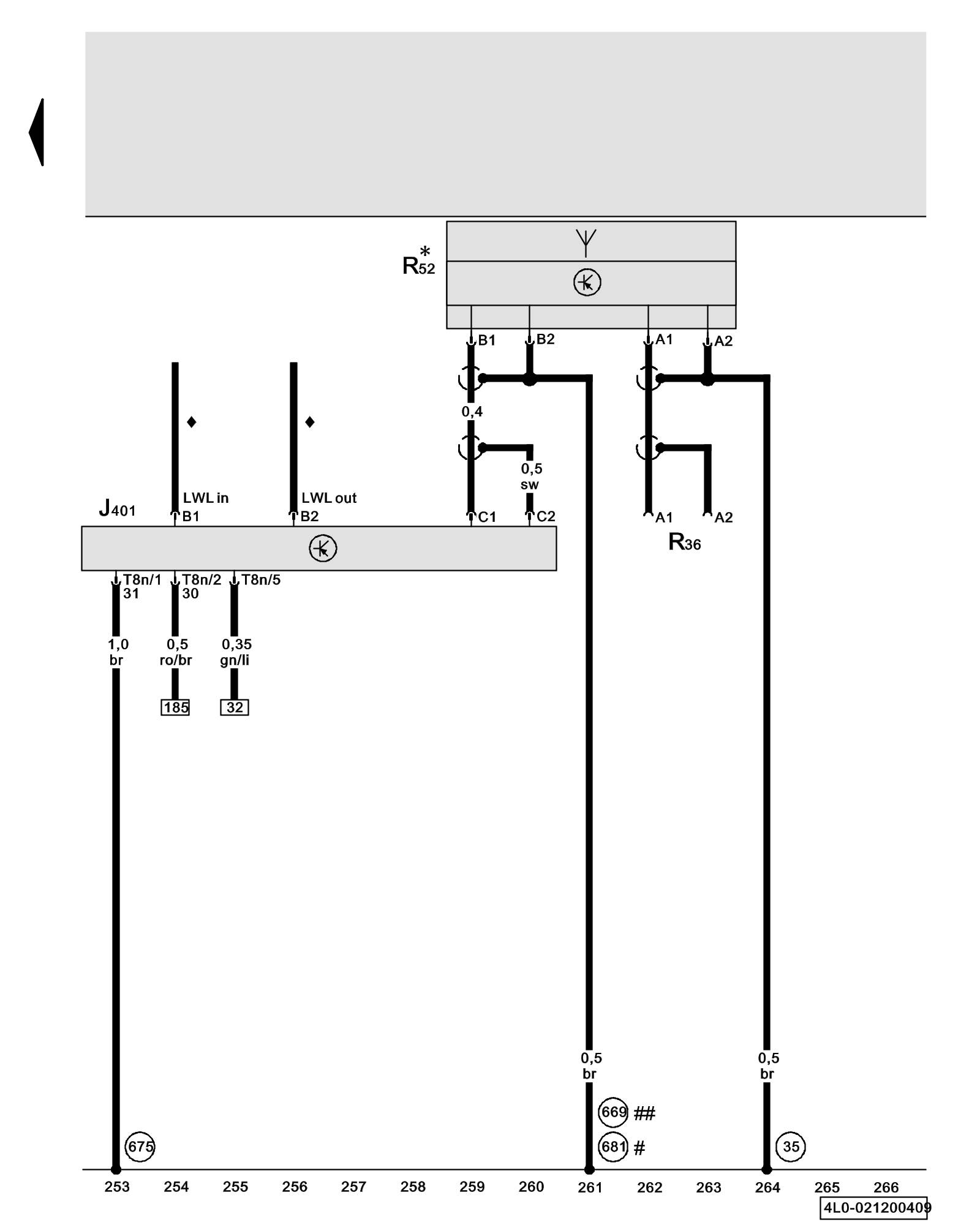

Navigation System Control Module with CD Drive, Antenna for Radio, Telephone, Navigation System





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Overview Of Control Modules

R36 - Telephone Transceiver Overview Of Control Modules

R52 - Antenna for Radio, Telephone, Navigation System Locations

T8n - 8-Pin Connector, black, on navigation system control module with CD drive

(35) - Ground Connection (below front passenger's seat) Locations

(669) - Ground Connection 2 (on right D-pillar) Locations

(675) - Ground Connection 2 (in right luggage compartment) Locations

(681) - Ground Connection 1 (in right rear side panel)

* - Roof Antenna

# - Through May 2009

## - from June 2009

- FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)

Previous Diagram 21/19 (Tracks 239-252)
