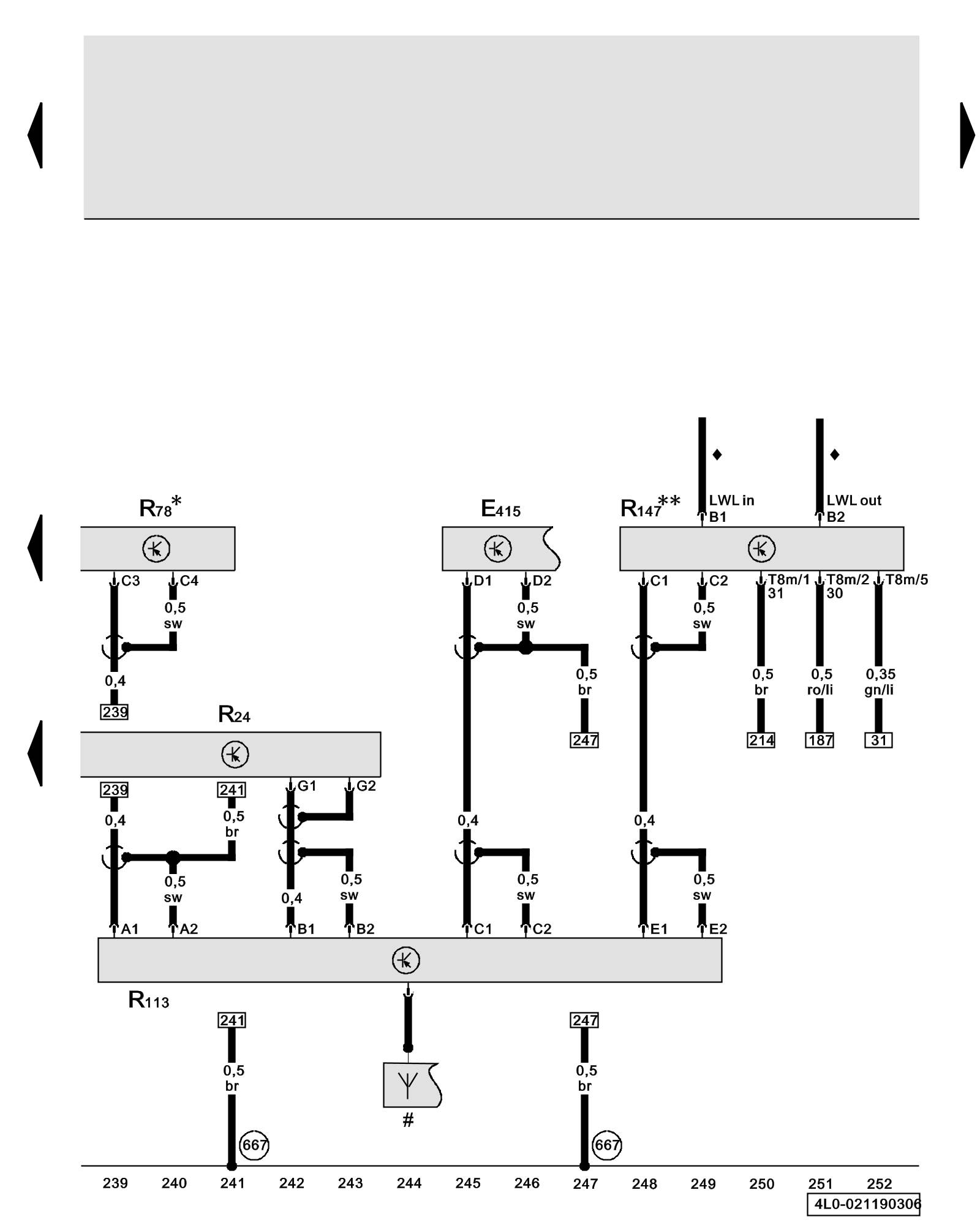

Diagram 21/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


TV Tuner, Digital Radio, Antenna Amplifier





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E415 - Access/Start Authorization Switch Overview Of Control Modules

R24 - Antenna Amplifier Locations

R78 - TV Tuner Overview Of Control Modules

R113 - Antenna Amplifier 4 Locations

R147 - Digital Radio Overview Of Control Modules

T8m - 8-Pin Connector, black, on digital radio

(667) - Ground Connection (on left rear roof) Locations

* - Models with TV Tuner

** - Models with digital radio

# - Left side window antenna

♦ - FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)

Previous Diagram 21/18 (Tracks 225-238)

Next Diagram 21/20 (Tracks 253-266)
