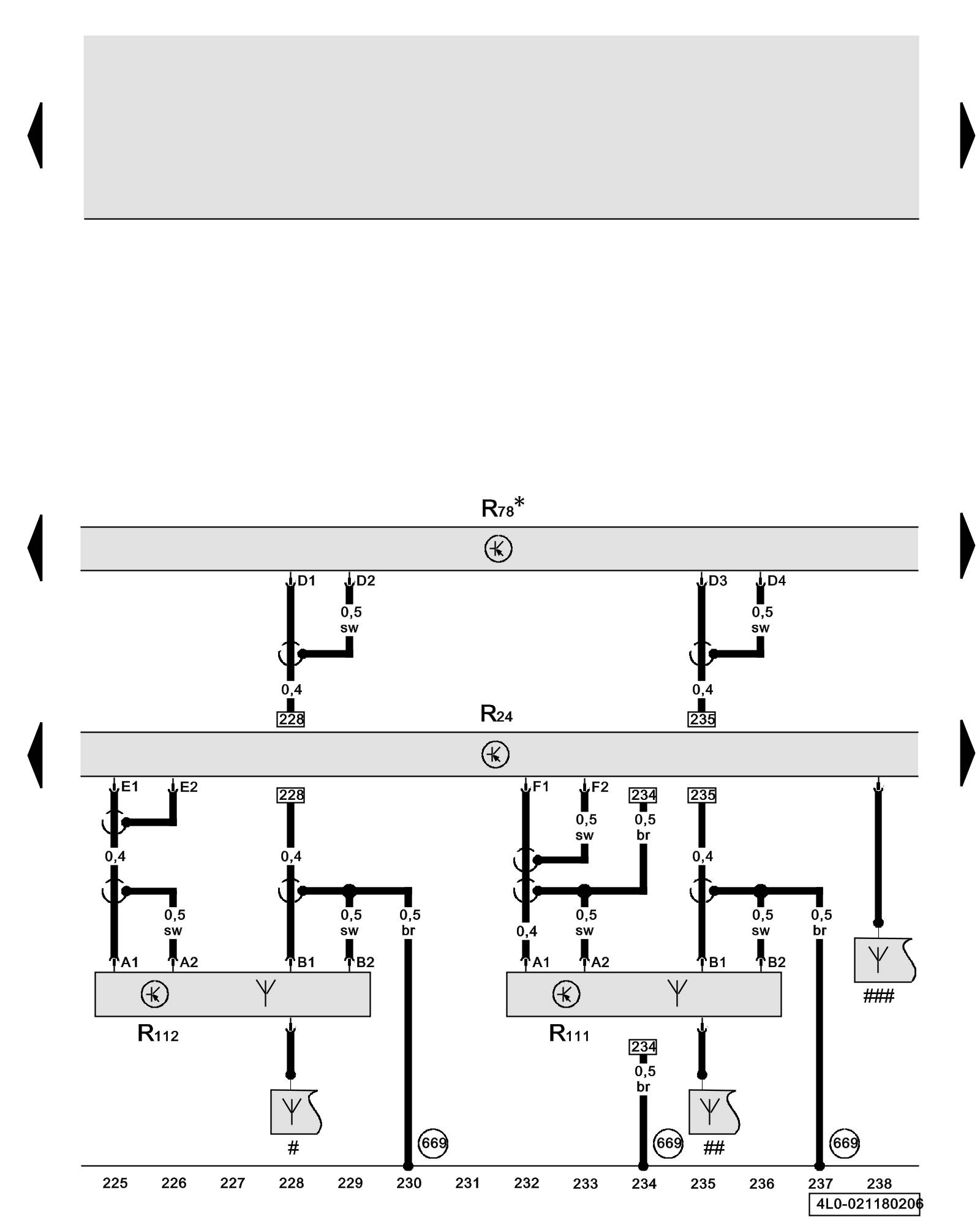

Diagram 21/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


TV Tuner, Antenna Amplifier





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R24 - Antenna Amplifier Locations

R78 - TV Tuner Overview Of Control Modules

R111 - Antenna Amplifier 2 Locations

R112 - Antenna Amplifier 3 Locations

(666) - Ground Connection (on right rear roof) Locations

(669) - Ground Connection 2 (on right D-pillar) Locations

* - Models with TV Tuner

# - Rear Window Antenna

## - Spoiler Antenna

### - Right Side Window Antenna

Previous Diagram 21/17 (Tracks 211-224)

Next Diagram 21/19 (Tracks 239-252)
