Diagram 21/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Speech Input Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

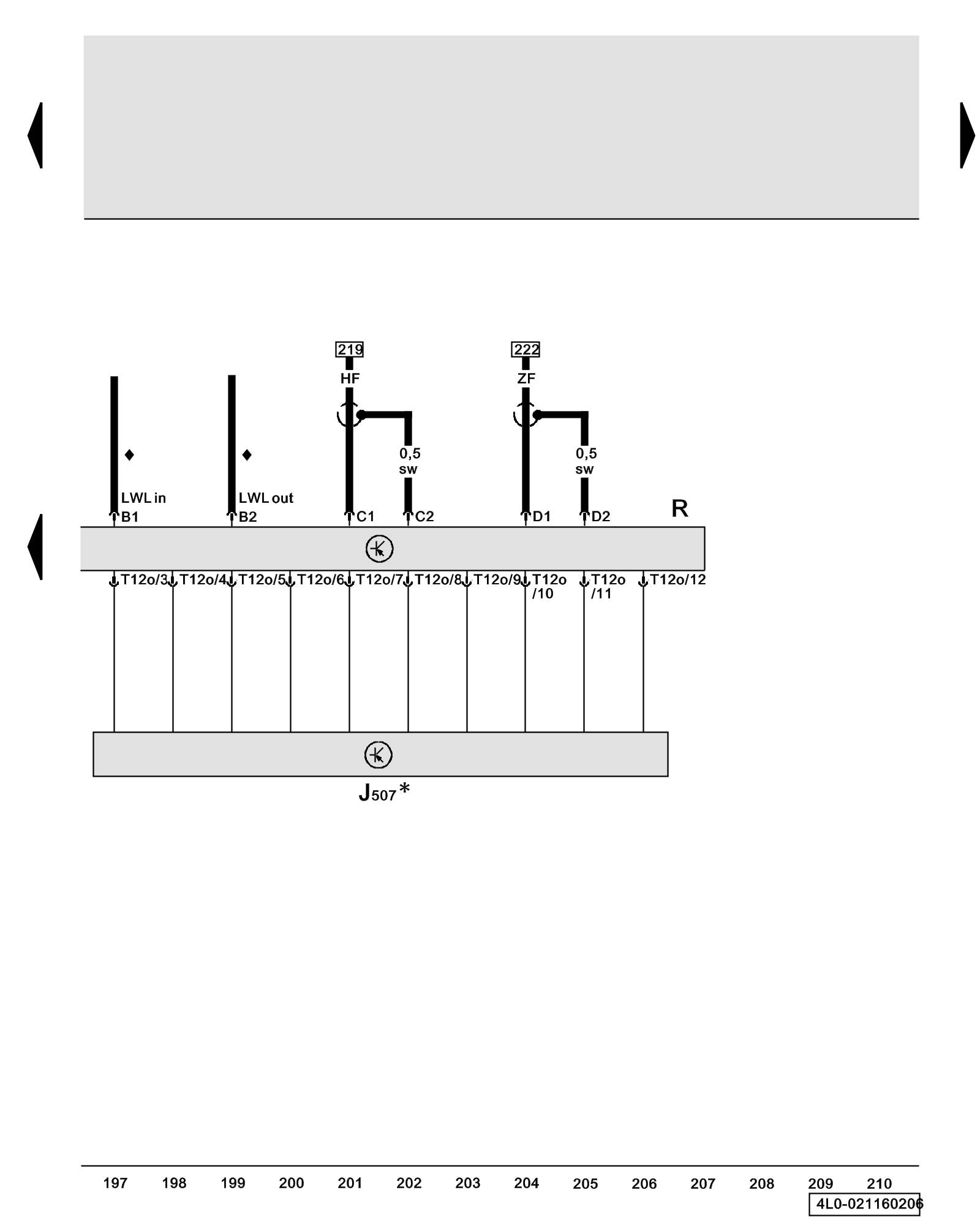

J507 - Speech Input Control Module Component Locations

R - Radio Overview Of Control Modules

T12o - 12-Pin Connector, on radio

* - Models with voice control

♦ - FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)

Previous Diagram 21/15 (Tracks 183-196)

Next Diagram 21/17 (Tracks 211-224)
