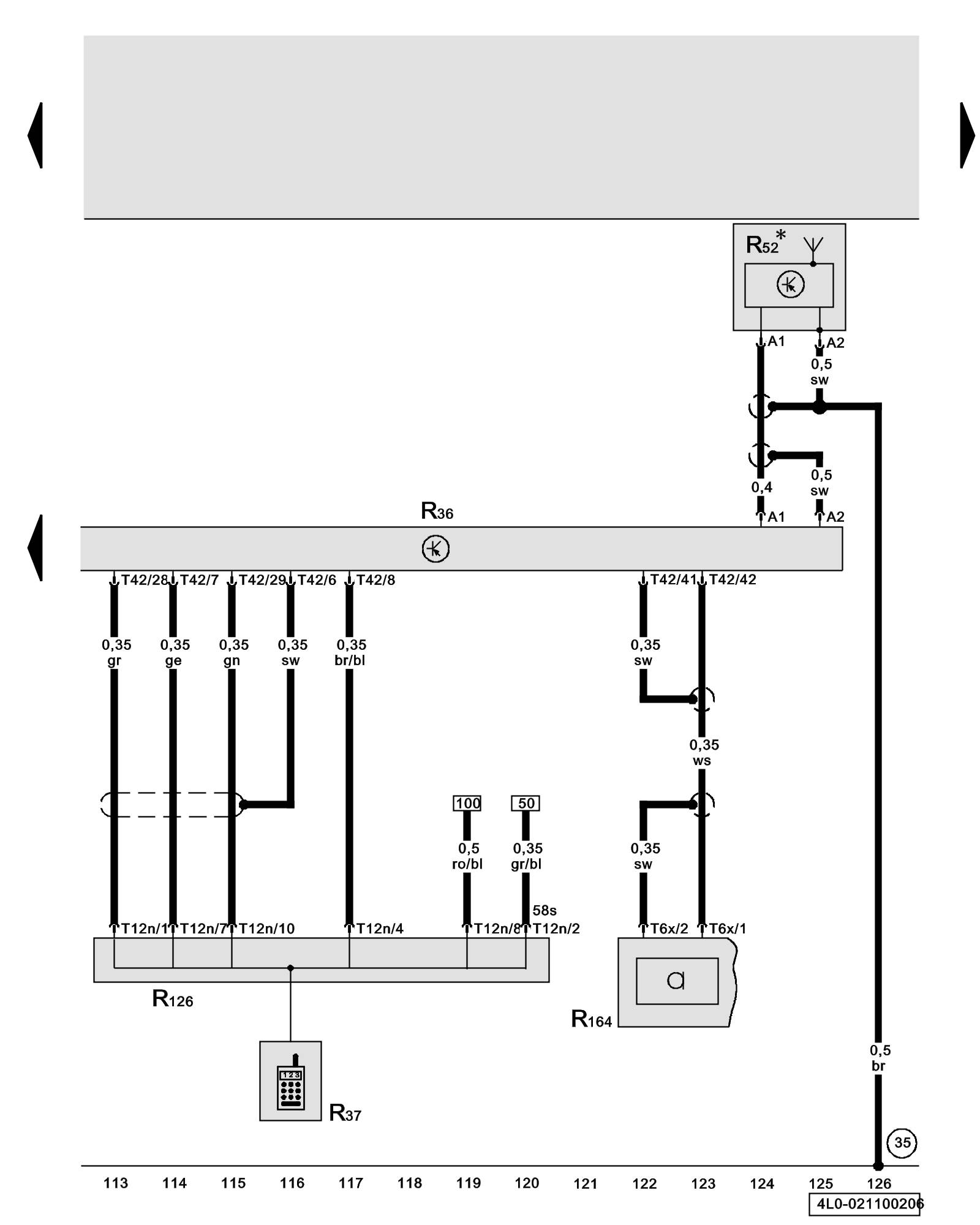

Diagram 21/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Transceiver, Telephone Handset, Microphone Unit (in front roof module), Antenna for Radio, Telephone, Navigation System





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R36 - Telephone Transceiver Overview Of Control Modules

R37 - Telephone Handset

R52 - Antenna for Radio, Telephone, Navigation System Locations

R126 - Telephone Baseplate Phone System Components Locations

R164 - Microphone Unit (in front roof module) Phone System Components Locations

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T12n - 12-Pin Connector, black, on telephone baseplate

T42 - 42-Pin Connector, blue, on telephone transceiver

(35) - Ground Connection (below front passenger's seat) Locations

* - Roof Antenna

Previous Diagram 21/9 (Tracks 99-112)

Next Diagram 21/11 (Tracks 127-140)
