Diagram 57/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Multimedia Control Module, TV Tuner





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

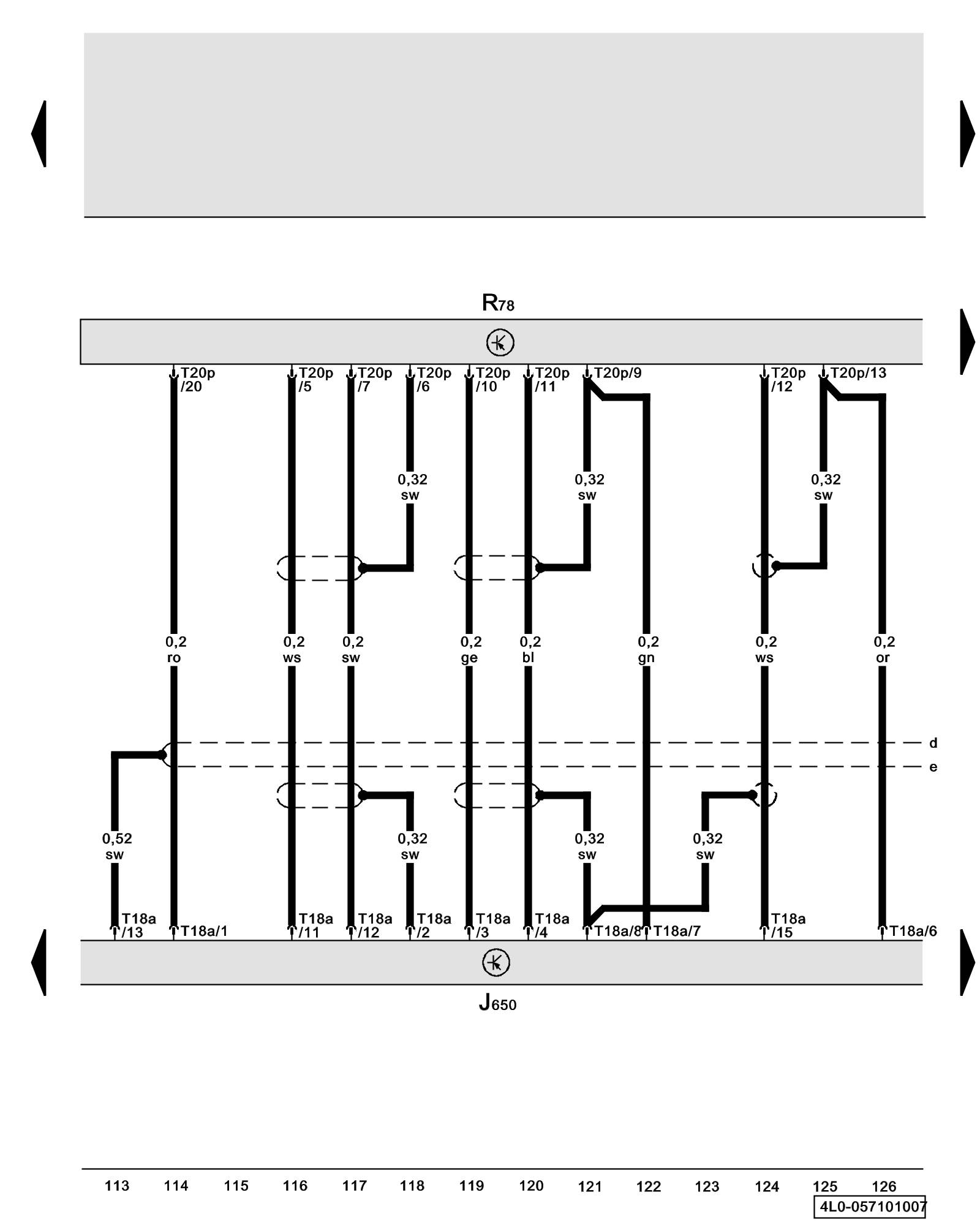

J650 - Multimedia Control Module

R78 - TV Tuner Overview Of Control Modules

T18a - 18-Pin Connector, black, on multimedia control module

T20p - 20-Pin Connector, on TV Tuner

Previous Diagram 57/9 (Tracks 99-112)

Next Diagram 57/11 (Tracks 127-140)
