Sunroof / Moonroof Panel: Adjustments

Glass Sunroof Panel, Adjusting

Checking adjustment

- Perform height adjustment at front and rear according to illustration to prevent wind noise.





- Check height adjustment to vehicle center.

- The panels to body and to each should not be higher or lower than roof at any point.

Adjusting

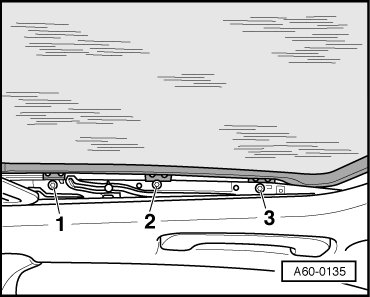

- Loosen screws - 1 - to - 3 - several turns.





- Adjust panel.
