Speaker In Center (R148)

Speaker In Center (R148)

The Center Loudspeaker is located in the spare wheel well.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove floor panel.

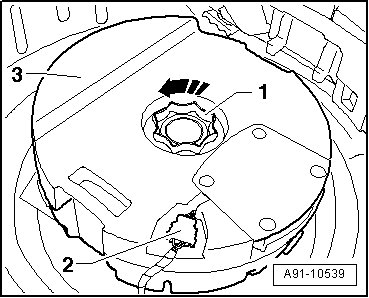

- Disconnect harness connector - 2 - at Center Loudspeaker - 3 -.





- Turn star handle- 1 - in - direction of arrow - until it can be removed.

- Lift Center Loudspeaker out of spare wheel well.

Installing

- Install in reverse order of removal.
