Diagram 57/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

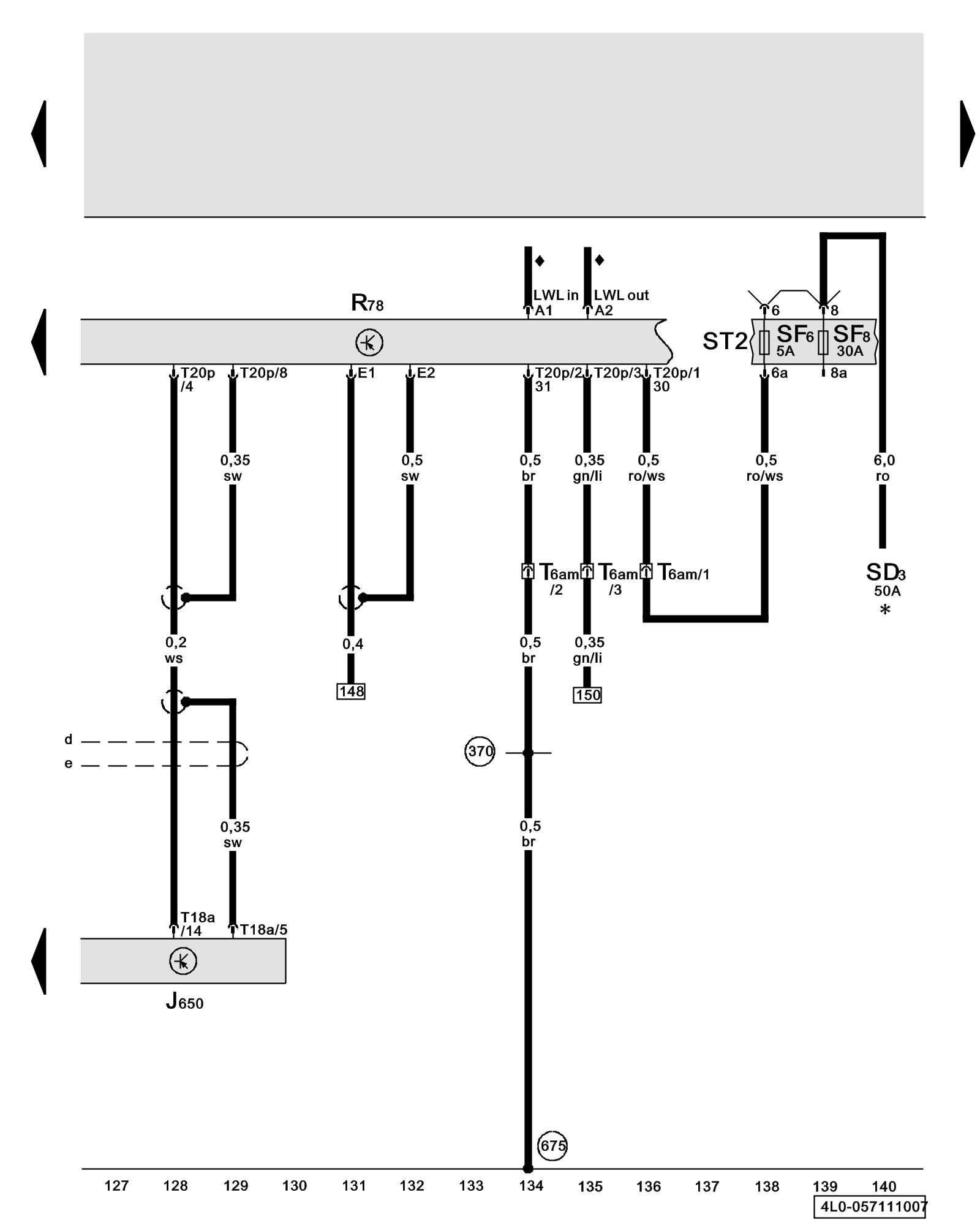

Multimedia Control Module, TV Tuner





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J650 - Multimedia Control Module

R78 - TV Tuner Overview Of Control Modules

SD3 - Fuse 3 (on fuse panel D) Overview Of Fuses

SF6 - Fuse 6 (on fuse panel F) Overview Of Fuses

SF8 - Fuse 8 (on fuse panel F) Overview Of Fuses

T6am - 6-Pin Connector, blue, in right luggage compartment Fuses (SF) On Fuse Panel F

T18a - 18-Pin Connector, black, on multimedia control module

T20p - 20-Pin Connector, on TV Tuner

(370) - Ground Connection 5 (in main wiring harness)

(675) - Ground Connection 2 (in right luggage compartment) Locations

* - Relay and fuse carrier below driver's seat

♦ - FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)

Previous Diagram 57/10 (Tracks 113-126)

Next Diagram 57/12 (Tracks 141-154)
