From VIN 8E_8A 002700

Selector Lever Cable, Bringing into Basic Setting

Special tools, testers and auxiliary items required

• Socket and key (T40031)

Procedure

• Tightening specifications. Refer to => [ Selector Lever Cable and Locking Cable Assembly Overview ] Selector Lever Cable and Locking Cable Assembly Overview

- Remove cover for shift mechanism. Refer to => [ Selector Mechanism Cover ] Selector Mechanism Cover.

- Place selector lever in position "D".

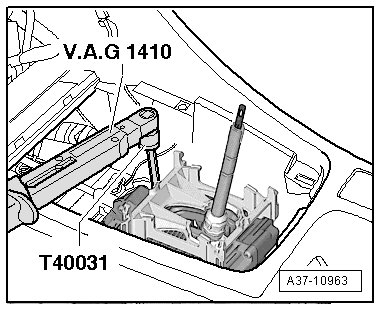

• Before performing basic setting, make sure that the clamping screw is tightened. It is accessible through the hole in shift mechanism in position " D" using socket and key (T40031).





- In this position, tighten clamping screw with the socket and key (T40031).

- Place selector lever in position "P".

- Remove the mounting bracket on the transmission - arrows -.





• In the illustration the transmission support is removed.

• Make sure selector lever is in position "P".

- Push selector shaft lever - 2 - on the transmission all the way back (in the illustration shown all the way to the right) until the parking lock engages.





• When parking lock is engaged, it must not be possible to turn both front wheels in one direction at the same time.

- Make sure that selector lever cable - 1 - has been routed free of kinks and tension.

- Secure selector lever cable bracket - arrows -.





- Adjust selector lever cable. Refer to => [ Selector Lever Cable, Checking and Adjusting ] Selector Lever Cable, Checking and Adjusting.
