Shim Positions

Shim Positions

• Table of adjustments when replacing individual components of final drive. Refer to => [ Adjustment Table ] Adjustment Table.

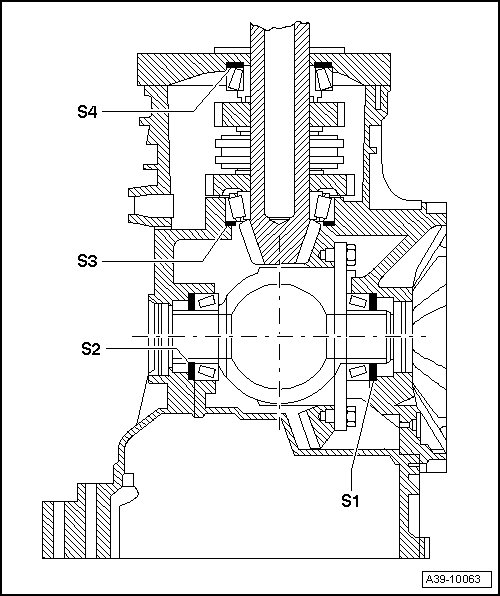

S1 - Shim for crown wheel in cover for final drive

S2 - Adjustment shim for crown wheel in transmission housing

S3 - Adjustment shim for pinion shaft in transmission housing

S4 - Shim for pinion shaft in bearing housing
