Vehicles Through VIN 8E 6A156499

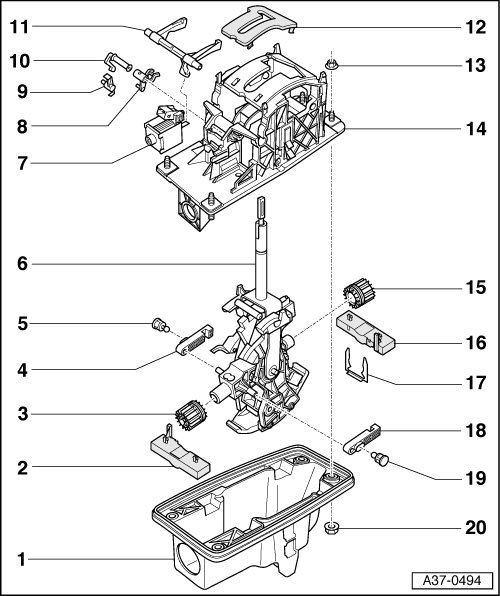

Shift Mechanism Assembly Overview

• Lubricate the bearing areas and slide surfaces with polycarbamide grease (G 052 142 A2).





1 Shift mechanism bottom cover

2 Bracket

• For selector lever,

3 Bushing

4 Tiptronic locking lever

5 Pivot pin

6 Selector lever

7 Shift lock solenoid (N110)

• Removing and installing, refer to => [ Shift Lock Solenoid ] Shift Lock Solenoid.

8 Operating lever for locking cable

9 Lock for locking cable

10 Lever for locking cable

11 Locking lever

12 Shift lever guide

• Clipped onto the shift unit => [ (Item 14) Shift unit ] and bolted to 0.4 Nm

• If selector lever guide or shift unit is faulty, the entire shift mechanism must be replaced. It is not possible to adjust both components using shop equipment.

13 Nut

• 10 Nm

14 Shift unit

15 Bushing

16 Retaining bracket for selector lever

17 Retaining clip

18 Tiptronic locking lever

19 Pivot pin

20 Nut

• 10 Nm
