2009
>>
A4 Cabriolet (8HE) L4-2.0L Turbo (BWT)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Panel
>>
Relay Carrier
>>

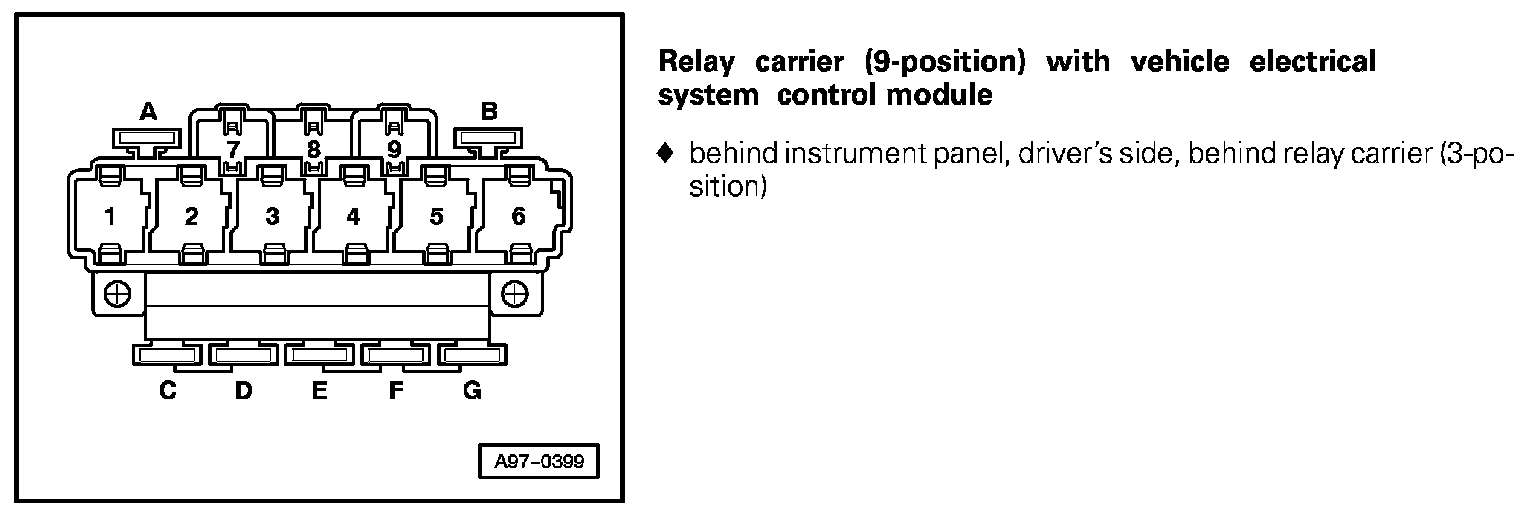

Relay Carrier (9-Position) With Vehicle Electrical System Control Module
Relay Carrier (9-Position) With Vehicle Electrical System Control Module
Fuse Colors:

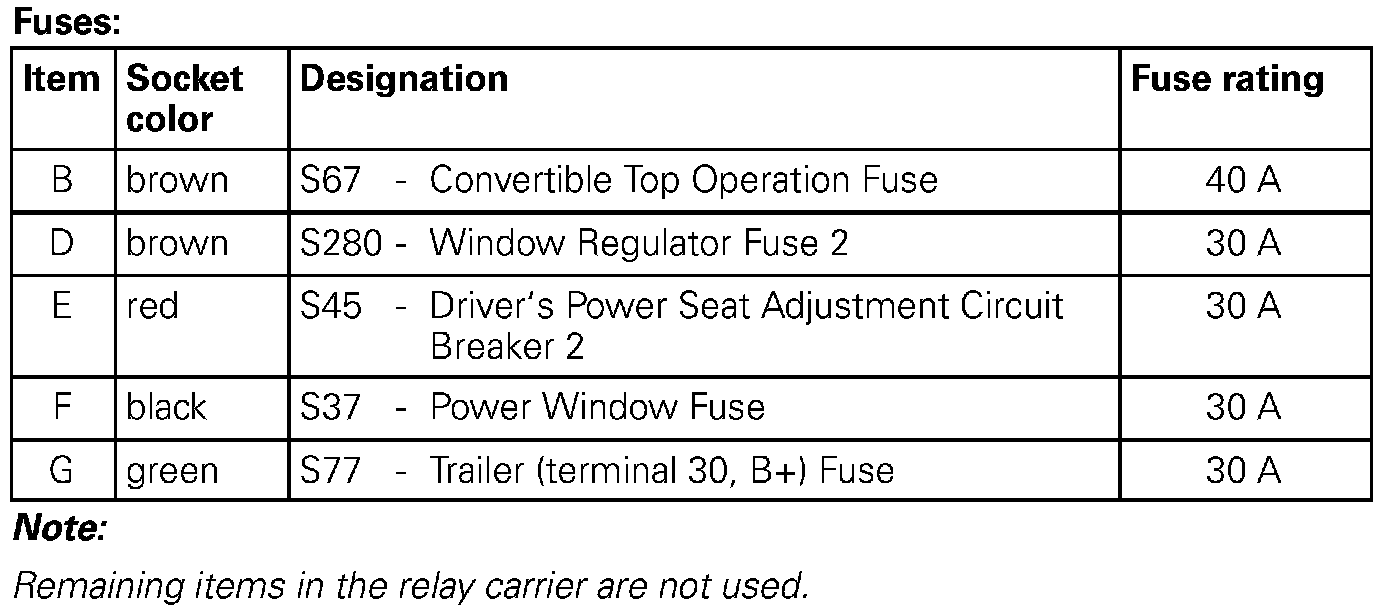

Fuses:
