Rear Suspension

Vehicle Level Sensor

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331)

- Dismount tire.

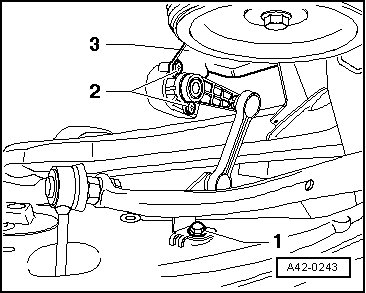

- Remove bolt - 1 -.





- Remove bolts - 2 - with angled wrench. Do not bend upper retaining plate when doing so.

Transverse link is not shown to improve clarity.

- Adapt replacement part accordingly and install.

• Hold Level Control System Sensor securely when tightening screws - 2 -.

Tightening specifications:

Item 1: 10 Nm
Item 2: 5 Nm

- After replacing, perform basic setting for headlamps.

- Mount wheel and tighten.
