Clutch Switch: Service and Repair

Clutch Pedal Switch

• Clutch pedal switch (F36) may only be installed once so as to ensure a firm fit.

Removing

- Remove storage compartment on driver's side.

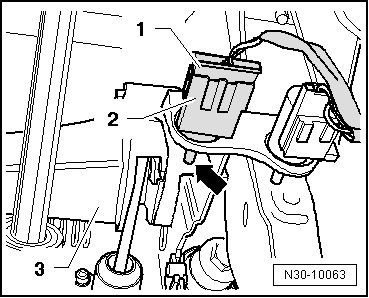

- Disconnect electrical connector - 1 - on clutch pedal switch.





• The clutch pedal - 3 - is in the normal position (i.e. not pressed down). The operating rod - arrow - of the clutch pedal switch (F36) should then rest against the clutch pedal.

- Release clutch pedal switch (F36) - 2 - by turning 45 degrees counterclockwise and remove from guide.

Installing

Installation is perform in reverse sequence. Note the following:

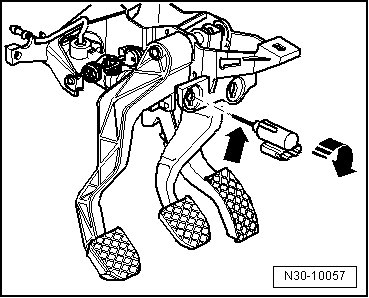

- Pull out operating rod - arrow - all the way before installing clutch pedal switch (F36).

• The clutch pedal should be in the normal position (i.e. not pressed down).





- Guide clutch pedal switch (F36) through mounting hole, press against clutch pedal and attach by turning 45° clockwise.

- Plug in connector for clutch pedal switch (F36 ).

- Install storage compartment on driver's side.

Removing and installing clutch pedal starter interlock switch (F194)

• To ensure a secure fit, the clutch pedal starter interlock switch (F194) must not be installed more than once.

Removing

- Remove storage compartment on driver's side.

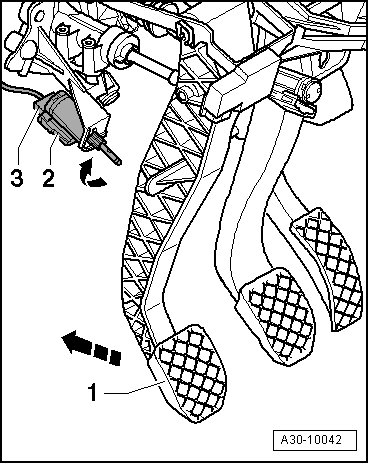

- Disconnect electrical connector - 3 - on clutch pedal starter interlock switch.





- Press clutch pedal - 1 - all the way down and hold it in this position.

- At the same time, release clutch pedal starter interlock switch - 2 - by turning it 45 degrees in the direction indicated - arrow - and pull it out of the guide.

Installing





- Pull out operating rod - arrow - all the way before installing clutch pedal switch.

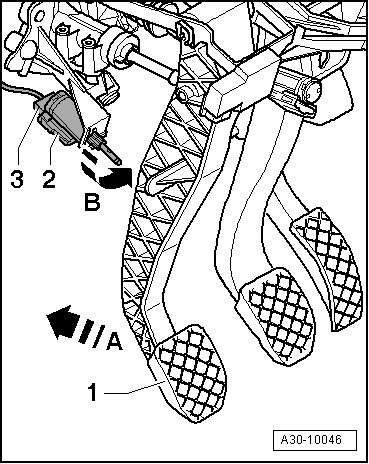

- When installing clutch pedal starter interlock switch, press clutch pedal - 1 - all the way down - arrow A -. Hold clutch pedal in this position.





- Guide clutch pedal starter interlock switch - 2 - through opening in retainer, and at the same time push operating rod against clutch pedal and secure switch by turning it 45 degrees in the direction indicated - arrow B -.

- Connect electrical connector - 3 - on clutch pedal starter interlock switch.

- Install storage compartment on driver's side.
