Left and Right Rear Belt Guide Piece

Left and Right Rear Belt Guide Piece

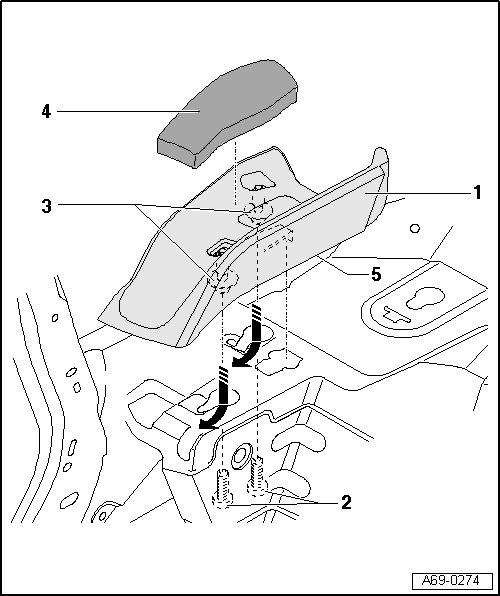

1 Rear Belt Guide Piece

• Removal:

- Remove side upholstery. Refer to => [ Rear Seat Side Upholstery ] Rear Seats.

- Remove C-pillar trim. Refer to => [ C-Pillar Trim ] Removal and Replacement.

- Remove rear 3-point seat belt. Refer to => [ Third Rear Three-Point Seat Belt, Folding Rear Seat Backrest ].

- If present, remove foam piece - 4 - from lower part of guide.

- Remove two Phillips-head bolts - 2 - from below.

- Remove belt guide piece - 1 -.

• Installing:

- When installing belt guide piece - 1 -, ensure both washers - 3 - lie below belt guide piece.

- Press belt guide piece into retainer so retaining tabs - 5 - engage audibly.

- Re-install bolts - 2 -.

- Lay foam piece - 4 - back into belt guide piece - 1 -.

- Re-install all additional removed parts.

2 Screws (Qty. 2)

3 Washers (Qty. 2)

4 Foam Piece

• Depending on version

5 Retaining Tab
