Diagram 91/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


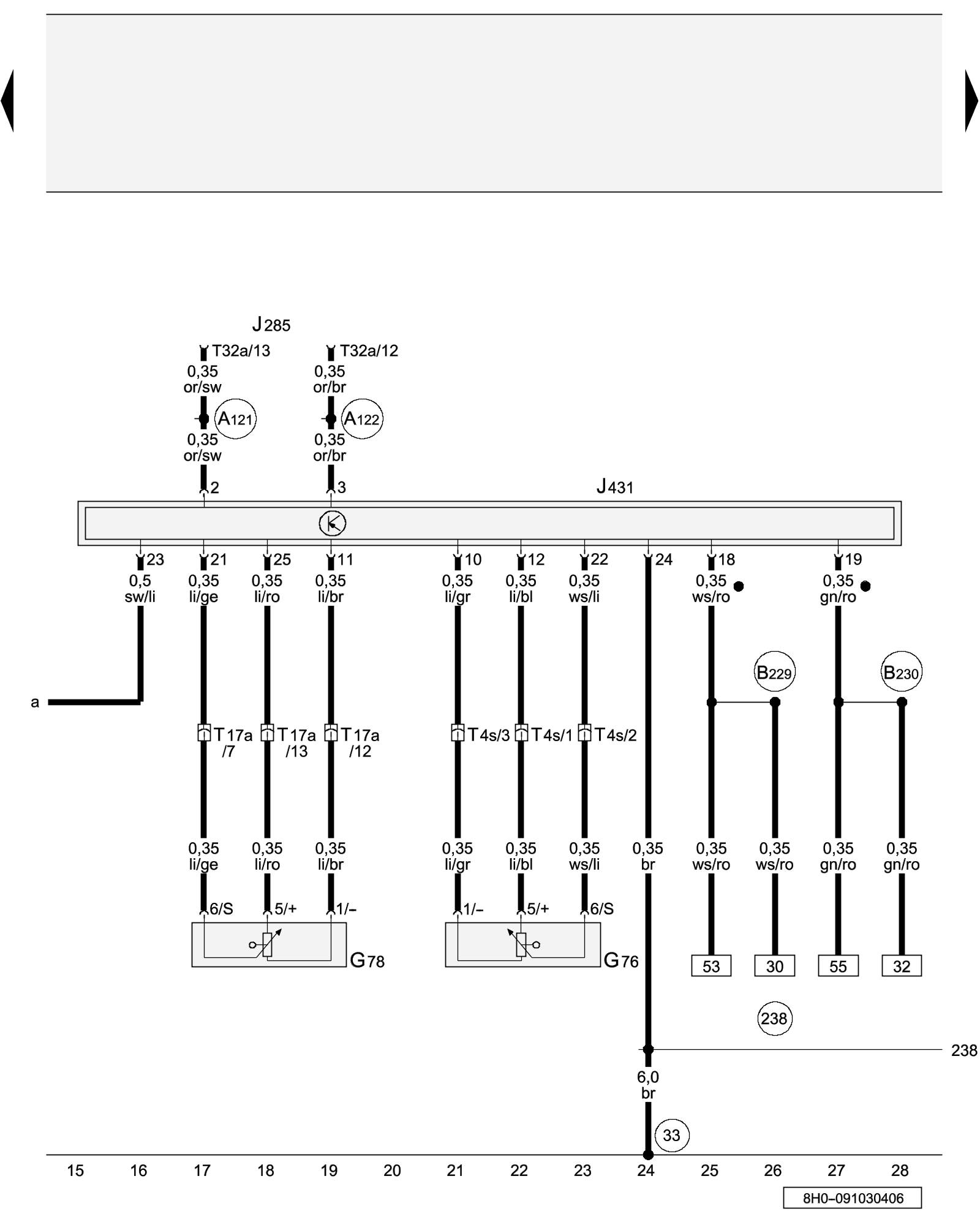

Left Rear Level Control System Sensor, Left Front Level Control System Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G76 - Left Rear Level Control System Sensor Locations

G78 - Left Front Level Control System Sensor Locations

J285 - Instrument Cluster Control Module Common Modules Overview

J431 - Headlamp Range Control Module Common Modules Overview

T4s - 4-Pin Connector, black, for Left Rear Level Control System Sensor

T17a - 17-Pin Connector, red, connector station A-pillar, left Connector Station

T32a - 32-Pin Connector, green, on instrument panel insert

(33) - Ground Connection (behind instrument panel, right) Locations

(238) - Ground Connection 1 (in interior wiring harness)

(A121) - High-Bus Connection (in instrument panel wiring harness)

(A122) - Low-Bus Connection (in instrument panel wiring harness)

(B229) - High-Bus Connection (in interior wiring harness)

(B230) - Low-Bus Connection (in interior wiring harness)

^ - CAN-Bus (Data bus)

Previous Diagram 91/2 (Tracks 1-14)

Next Diagram 91/4 (Tracks 29-42)
