Defroster Door Motor

Defroster Door Motor

Removing

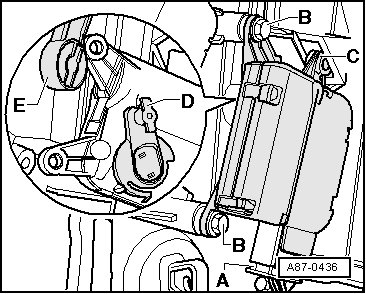

- Remove glove box.

- Disconnect connector - A -.





- Remove bolts - B -.

- Remove the control motor from bracket - C -.

- Remove lever - D - of the defroster flap motor (V107) from connecting rod - E -

Installing

• The lever on the control motor is color-coded. In the defroster flap motor (V107) the lever is dark green (light green in vehicles with steering on the right).

Reinstall all removed components in opposite sequence while observing the following:

- Install the wiring harness so that it cannot come in contact with any moving parts (e.g. the actuating arm of the control motor).

- Query the DTC memory. Refer to => [ DTC Memory, Interrogating ] DTC Memory, Interrogating and erase the DTC memory; perform the basic setting => [ Basic Setting ] Basic Setting.

• The function of the control motor can be checked for example: Connect both terminals "5" and "6" in control motor connector to 12 V (DC), the motor moves in one direction until stop, the direction of rotation changes by interchanging B+ and Ground. Use an adapter cable for this. Refer to => [ Preparing Adapter Cables for Control Motor Actuation ] A/C System Control and Regulation Components.
