Diagram 74/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


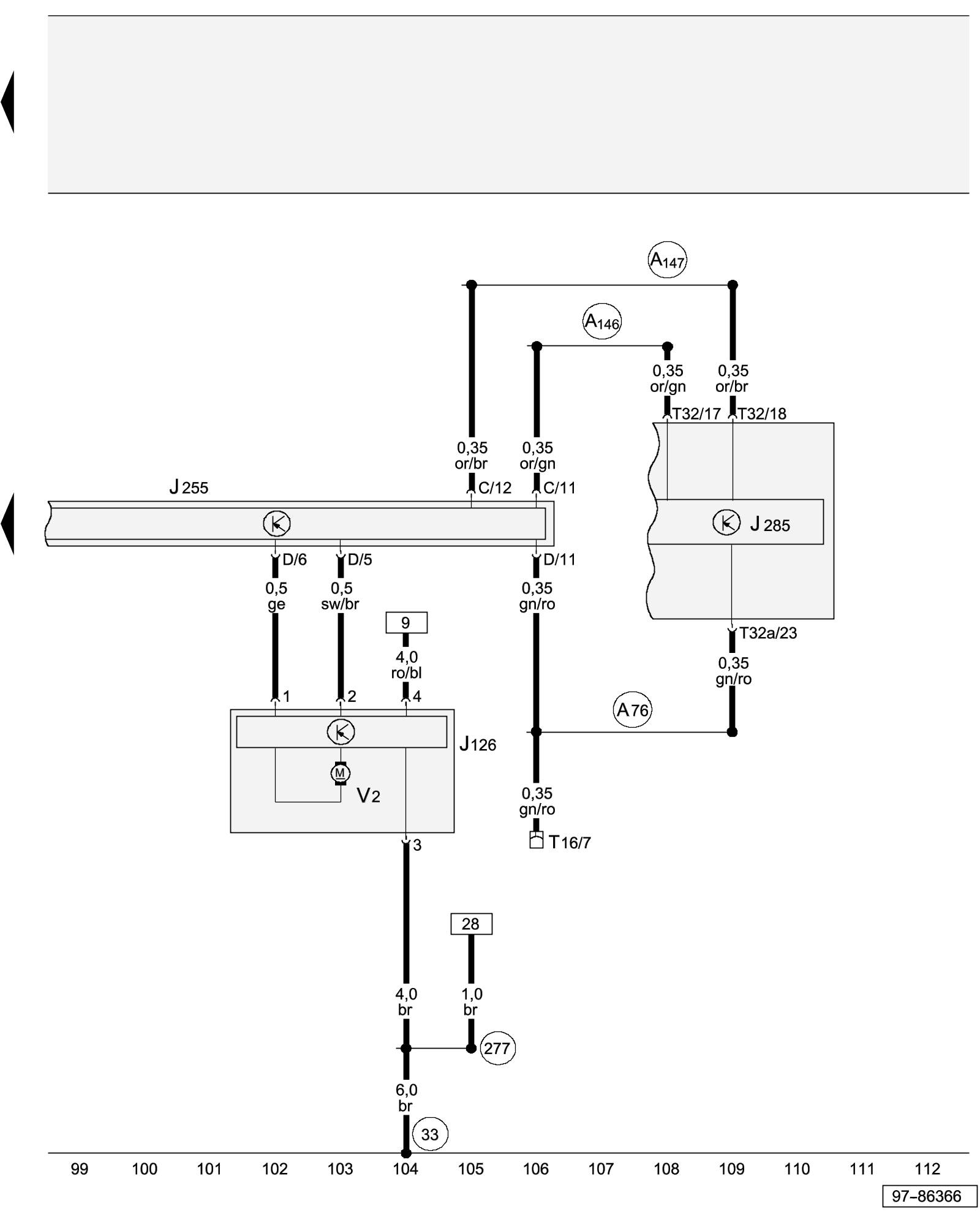

Fresh air blower





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J126 - Fresh air blower control module Common Modules Overview

J255 - Climatronic control module Components Inside Pass Compartment

J285 - Instrument cluster control module Common Modules Overview

T16 - 16-pin connector, black, diagnostic connector

T32 - 32-pin connector, blue, on instrument cluster

T32a - 32-pin connector, green, on instrument cluster

V2 - Fresh air blower Components Inside Pass Compartment

(33) - Ground connection behind instrument panel, right Locations

(277) - Ground connection 3 (in interior wiring harness)

(A76) - KS-diagnostic lead connection (in instrument panel wiring harness)

(A146) - Comfort system CAN bus high connection (in instrument panel wiring harness)

(A147) - Comfort system CAN bus low connection (in instrument panel wiring harness)

Previous Diagram 74/8 (Tracks 85-98)
