Rear Side Trim

Rear Side Trim

=> [ Rear Side Trim ]

=> [ Trim Molding ]

=> [ Insulation ]

Rear Side Trim

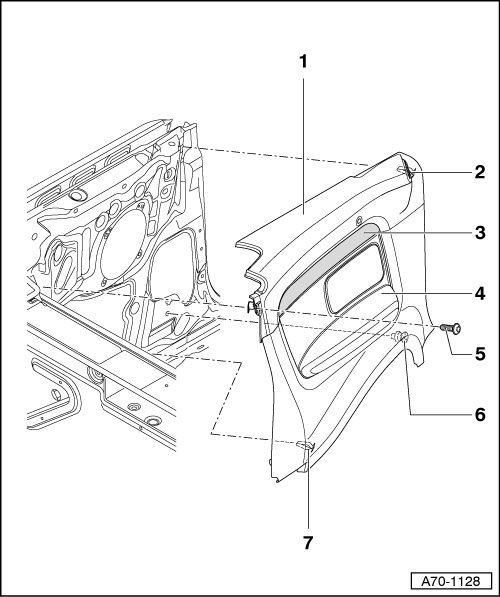

1 - Side Trim

• Removing

- Remove the rear bench seat. Refer to => [ Rear Bench Seat ] Rear Seats.

- Remove rear seat backrest. Refer to => [ Rear Seat Backrest ] Rear Seats.

- Remove trim pane. Refer to l => [ Trim Molding ] Trim Molding.

- Remove the center part - 4 -.

- Remove screw - 5 -.

- Reach into the side trim - 1 - and release the side trim - 1 - at the clips - 2 -, - 7 - and - 6 -.

- Remove the side trim - 1 -.

• To replace the side trim - 1 -:

•

- Remove anchorage point for outer floor assembly. Refer to => [ Outer Front Floor Assembly Anchorage Point ] Service and Repair.

• Installing

• After installing, make sure the seal is correctly pulled over the side trim.

•

- Pull back on the clip - 6 - to release the tension on it - 6 -.

- Install the side trim - 1 - in reverse order of removal.

2 - Clip

3 - Trim Panel

4 - Center Section

5 - Bolt

6 - Clip

7 - Clip

Trim Molding

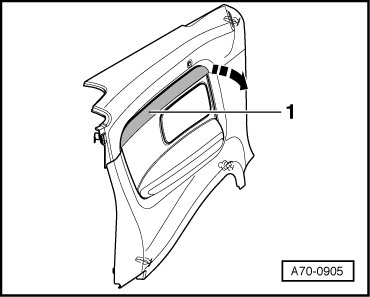

- Carefully pry off the trim - 1 - at the rear end in direction of - arrow -.





- Unclip decorative panel - 1 -.

Insulation





1 - Insulation with the Speaker Installed

2 - Insulation with the Speaker Not Installed

3 - Insulation

4 - Belt Roller Insulation

• Removing

- Remove the rear bench seat. Refer to => [ Rear Bench Seat ] Rear Seats.

- Remove rear seat backrest. Refer to => [ Rear Seat Backrest ] Rear Seats.

- Remove side trim. Refer to => [ Rear Side Trim ] Rear Side Trim

- Belt roller insulation: remove the front safety belt roller. Refer to => [ Front Three-Point Seat Belt with Belt Tensioner ] Service and Repair.

- All insulation: Be careful not damage the insulation when removing.

- Remove the insulation.

• Installing

- Press the insulation securely to the body.

- Belt roller insulation: install the belt roller. Refer to => [ Front Three-Point Seat Belt with Belt Tensioner ] Service and Repair.
