Left and Right Instrument Panel Speakers






Left and Right Instrument Panel Speakers

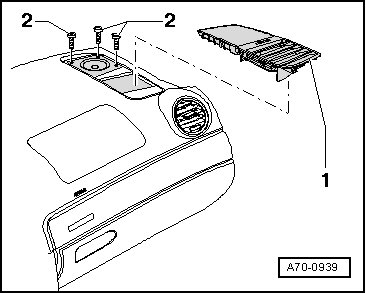

- Carefully pry out the speaker trim - 1 -.

- Remove bolts - 2 -.

- Remove the speaker and disconnect the connector.
