Trunk / Liftgate Weatherstrip: Service and Repair






Rear Lid Seal

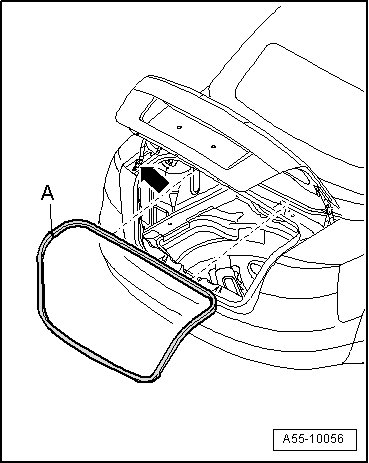

- Rear lid seal butt joint - item A - must be aligned on left hinge ball socket - arrow -.

- Press seal on.
