Trunk / Liftgate Latch: Service and Repair

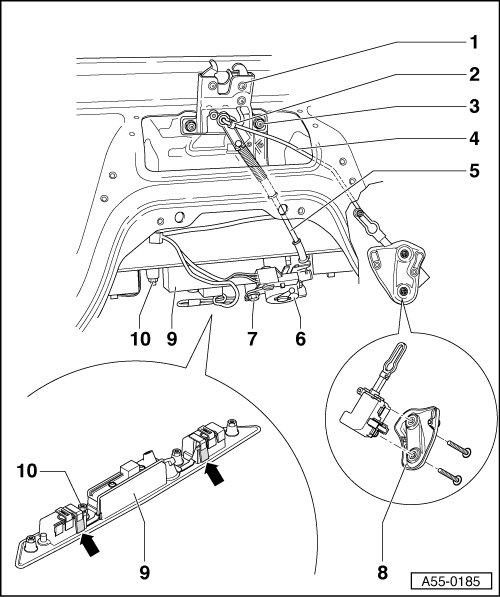

Rear Lid Lock and Handle Mechanism





1 Rear lid lock

• To remove, unclip operating rod from swiveling bush and disengage.

• Remove nuts => [ (Item 3) Nut ] and remove rear lid lock.

2 Swiveling bush

• After installing rear lid lock, engage operating rod and secure.

3 Nut

• 8 Nm

4 Operating rod

5 Release

6 Lock cylinder

• Removing:

- Disconnect electrical connectors.

- Disengage release => [ (Item 5) Release ] from lock cylinder.

- Remove bolt => [ (Item 7) Screw ].

- Twist lock cylinder 90°.

- Remove lock cylinder from handle mechanism.

7 Screw

• 8 Nm

8 Motor

• Country versions

9 Handle

• Removing:

- Remove rear lid trim.

- Remove lock cylinder.

- Remove bolts => [ (Item 10) Nut ].

- Press in catches - arrows -.

- Remove grip piece.

10 Nut

• 8 Nm
