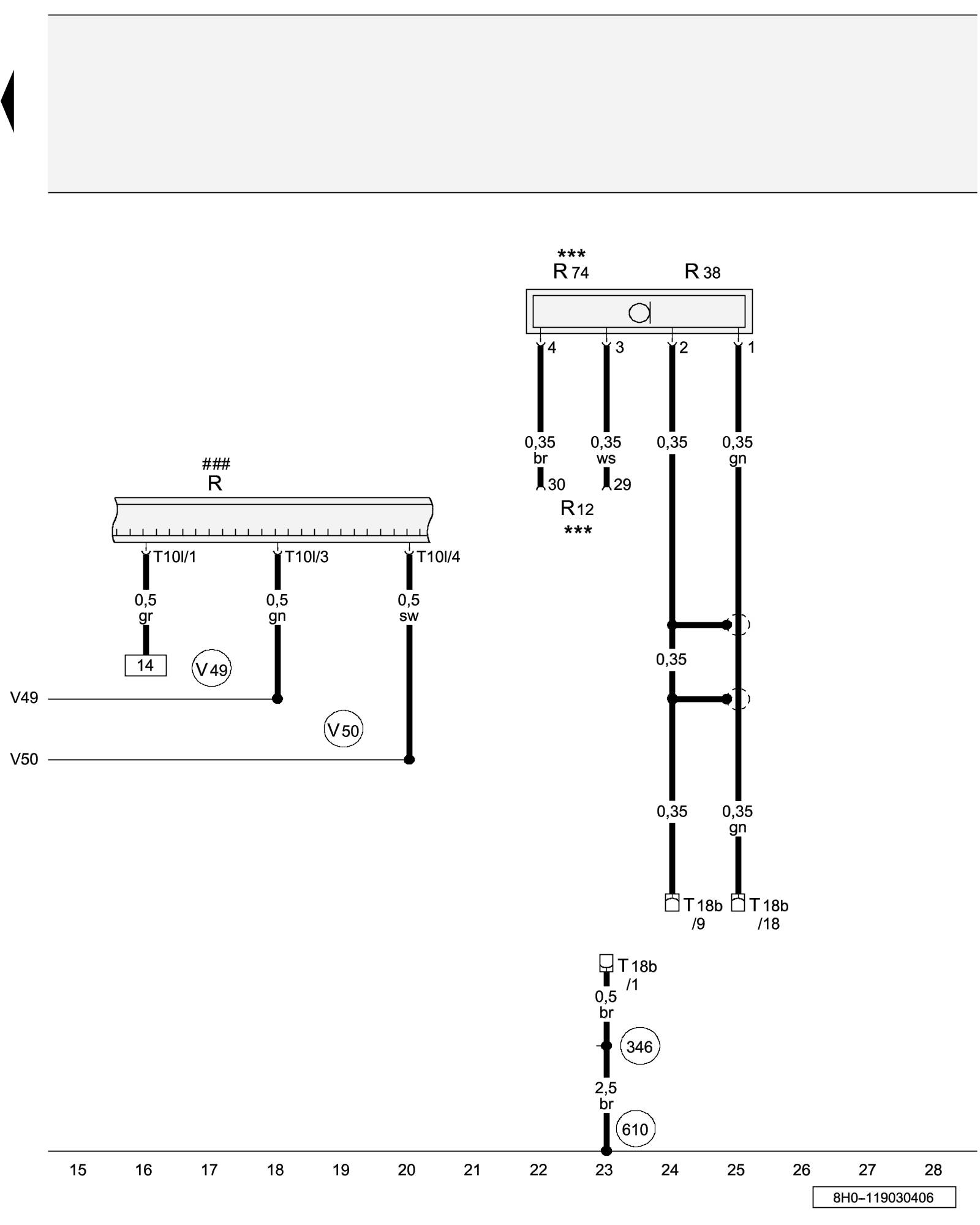

Diagram 119/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


18-Pin Connector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio

R12 - Amplifier Radio Sound System Overview

R38 - Telephone Microphone Telephone System Overview

R74 - Inside Microphone Radio Sound System Overview

T10l - 10-Pin Connector, red, radio connector IV

T18b - 18-Pin Connector, black,near glove compartment, Connector A

(346) - Audio Ground Connection (in instrument panel wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Locations

(V49) - Low Frequency + Connection (in communication wiring harness)

(V50) - Low Frequency - Connection (in communication wiring harness)

*** - with Bose Speaker only

### - with Radio only

Previous Diagram 119/2 (Tracks 1-14)
