Diagram 84/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

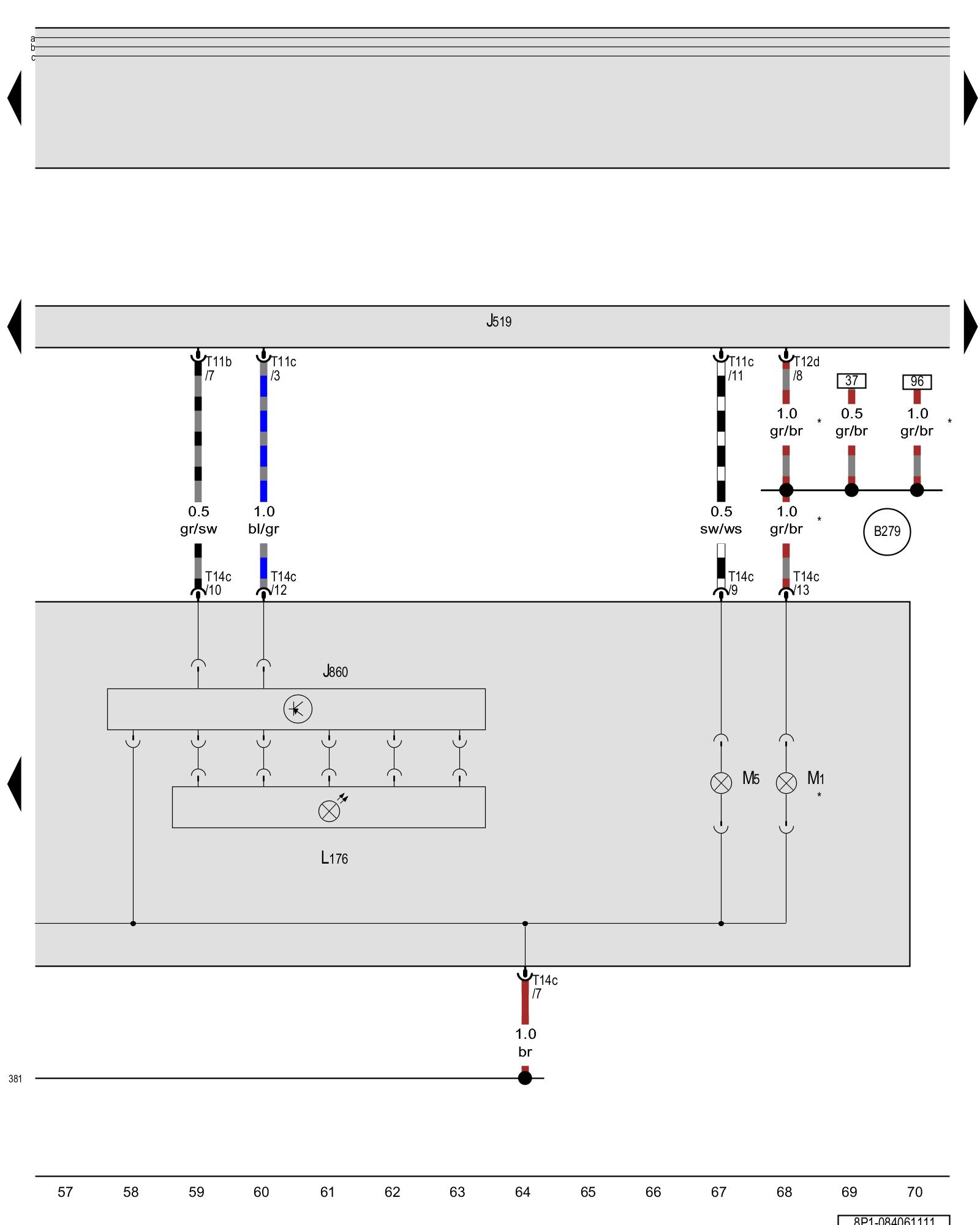

Vehicle electrical system control module, Left daytime running lamp and parking lamp LED module, Left side marker lamp bulb, Left front turn signal bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J860 - Left daytime running lamp and parking lamp control module

L176 - Left daytime running lamp and parking lamp LED module

M1 - Left side marker lamp bulb

M5 - Left front turn signal bulb

T11b - 11-pin connector

T11c - 11-pin connector

T12d - 12-pin connector

T14c - 14-pin connector

(381) - Ground connection 16 (in main wiring harness)

(B279) - Positive connection 3 (15a) (in main wiring harness)

* - Only for vehicles with US equipment

Previous Diagram 84/5 (Tracks 43-56)

Next Diagram 84/7 (Tracks 71-84)
