Diagram 84/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

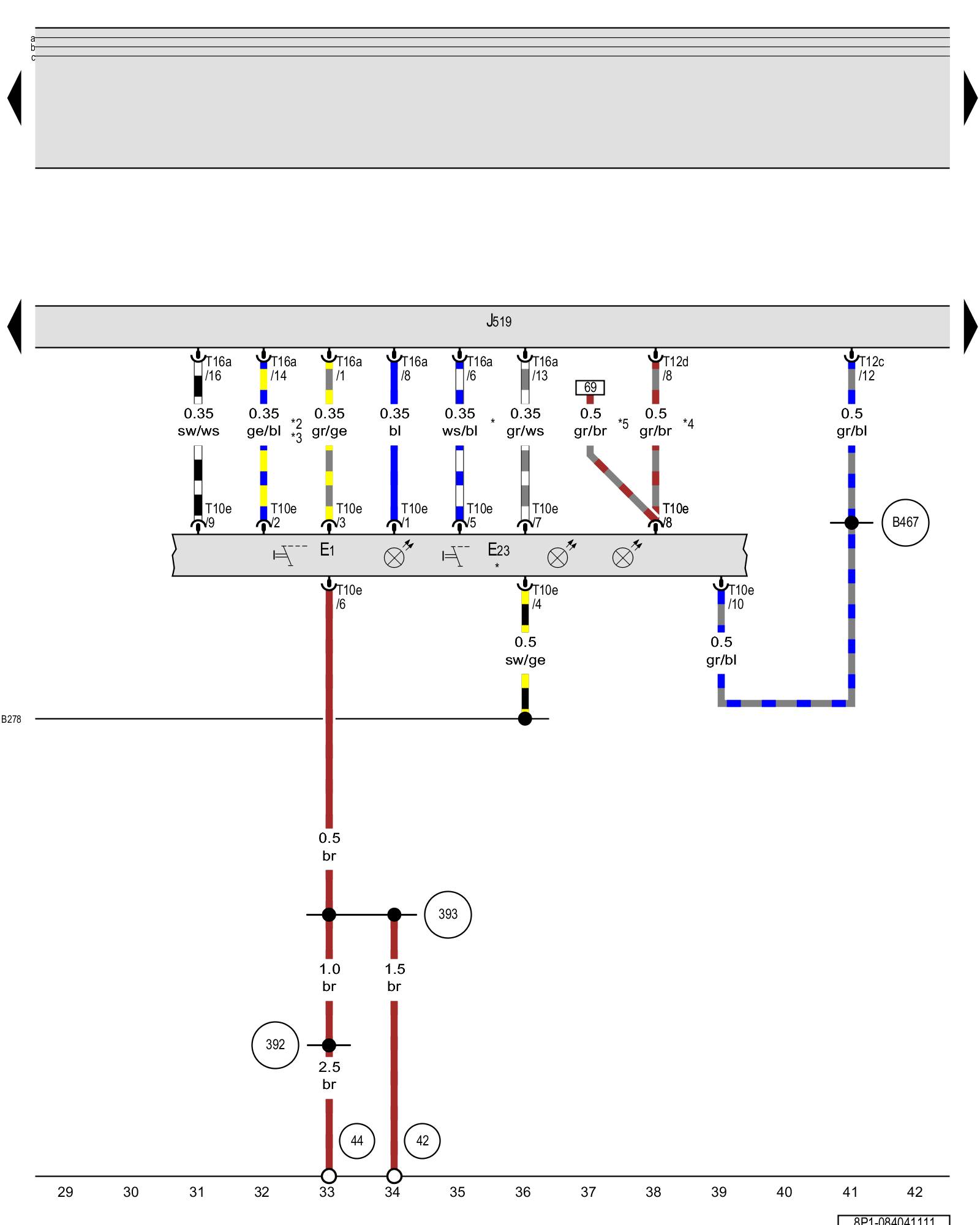

Light switch, Fog lamp and rear fog lamp switch, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light switch

E23 - Fog lamp and rear fog lamp switch

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

T10e - 10-pin connector

T12c - 12-pin connector

T12d - 12-pin connector

T16a - 16-pin connector

(42) - Ground connection near steering column Overview Of Ground Connections in Interior Of Vehicle

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(392) - Ground connection 27 (in main wiring harness)

(393) - Ground connection 28 (in main wiring harness)

(B278) - Positive connection 2 (15a) (in main wiring harness)

(B467) - Connection 3 (in main wiring harness)

* - Only for vehicles with fog lamps

*2 - Only for vehicles with daytime running lamps

*3 - Only for vehicles with automatic headlamp assist

*4 - Only for vehicles without US equipment

*5 - Only for vehicles with US equipment
