Engine, Securing to Assembly Stand

Engine, Securing on Assembly Stand

Special tools, testers and auxiliary items required

• Engine Sling (2024 A)

• Shop Crane -Load Cap=700-1200kg (VAS 6100)

• Engine and Transmission Holder (VAS 6095)

• Engine-/Gearbox Jack (V.A.G 1383 A)

Procedure

• The transmission is separated from the engine: => [ Engine and Manual Transmission, Separating ] Engine and Manual Transmission, Separating or => [ Engine and S-Tronic Transmission, Separating ] Engine and S-Tronic Transmission, Separating.

- Remove the engine cover - arrows -.

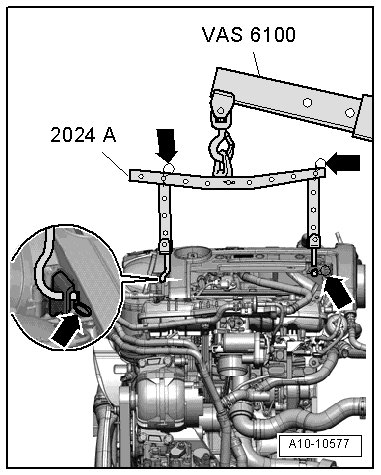

- Hook (2024 A) to engine and to (VAS 6100).






• To be aligned to the center of gravity of the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.


Loose engine support bridge components could cause an accident.

• Secure the mounting hooks and pins on the engine support bridge using securing pins - arrows -.

- Lower the engine from the (V.A.G 1383 A) using the (VAS 6100).

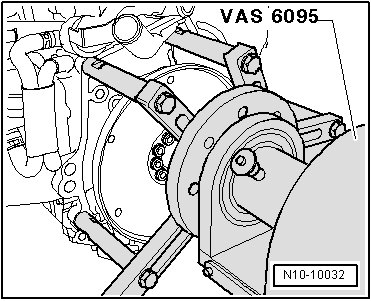

- Secure the transmission side of the engine to the (VAS 6095) as illustrated.
