Wipers/Washer - Rattle From Washer Reservoir

92 Rattle from instrument panel area

92 13 07

2021833/5

March 4, 2013.

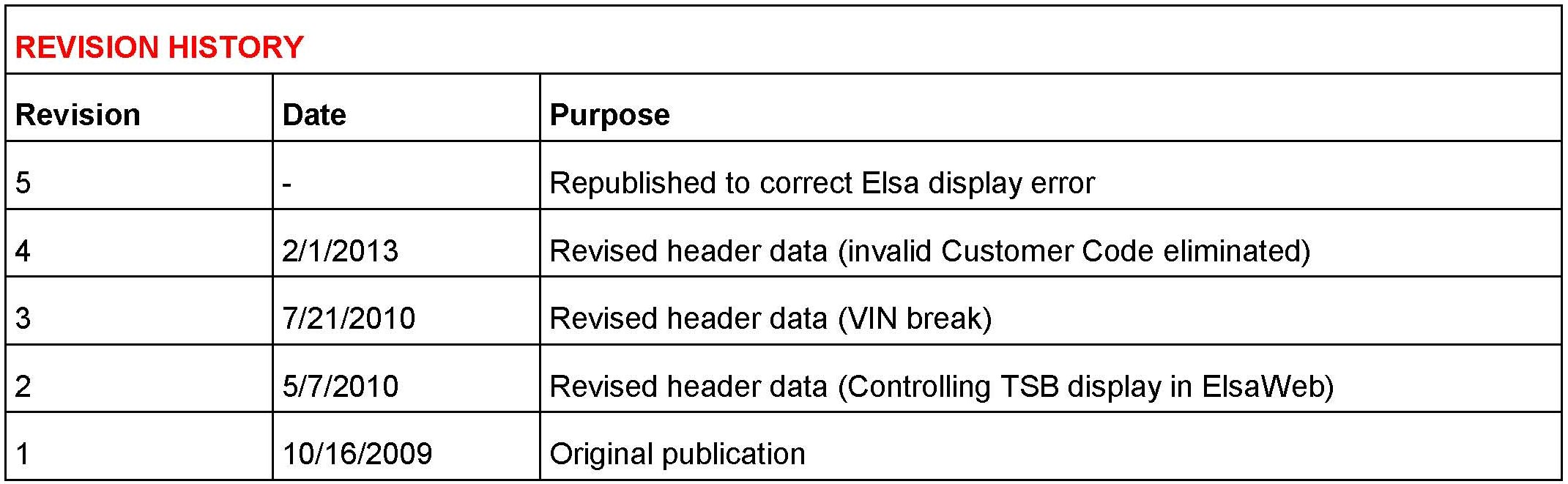

Supersedes Technical Service Bulletin Group 92 number 13-06 dated February 1, 2013 for reasons listed.

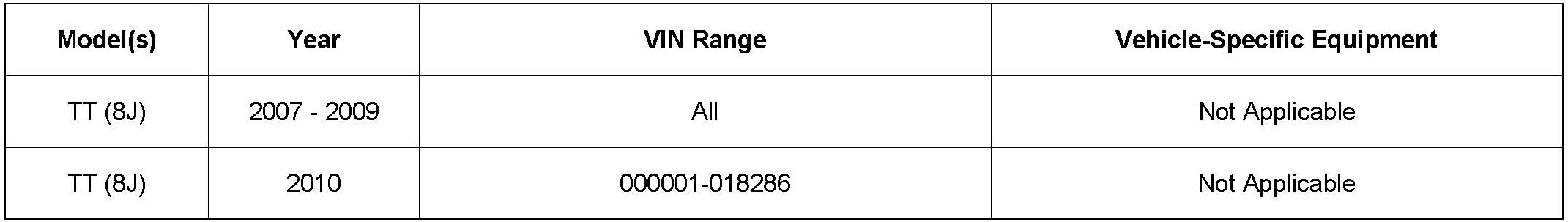

Vehicle Information





Condition

Rattling noises appear to be coming from the front of the vehicle or from the instrument panel area.

Technical Background

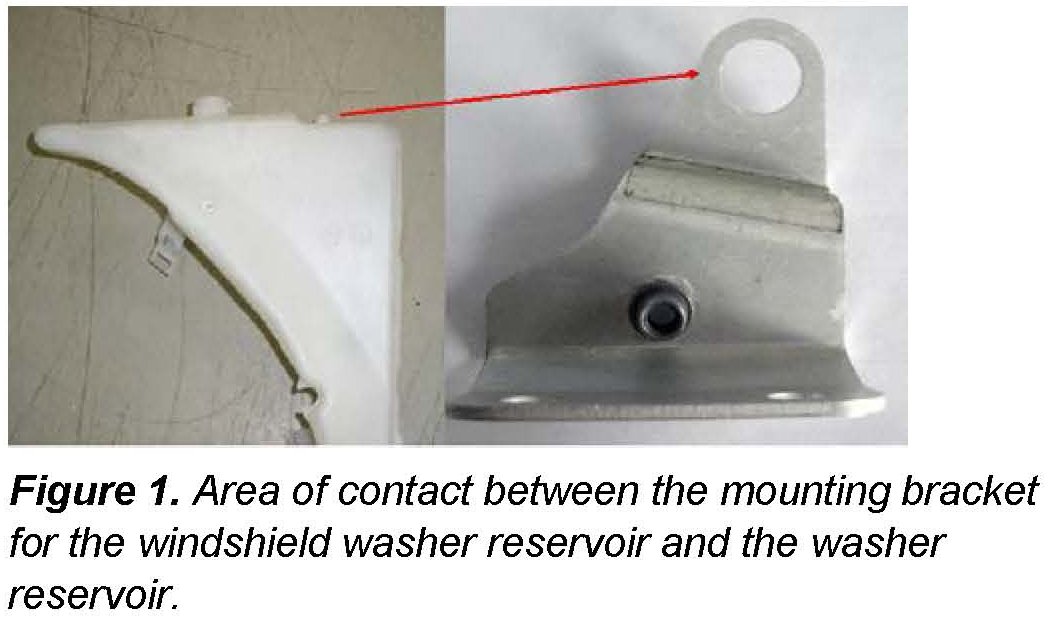

Excessive free play between the mounting bracket for the windshield washer reservoir and the washer reservoir (Figure 1).

Production Solution

Self-adhesive foam pad 8E5868739 attached to the mounting bracket.

Service

1. Remove the front wheel housing liner.

2. Check the windshield washer reservoir for free play in the mounting bracket.

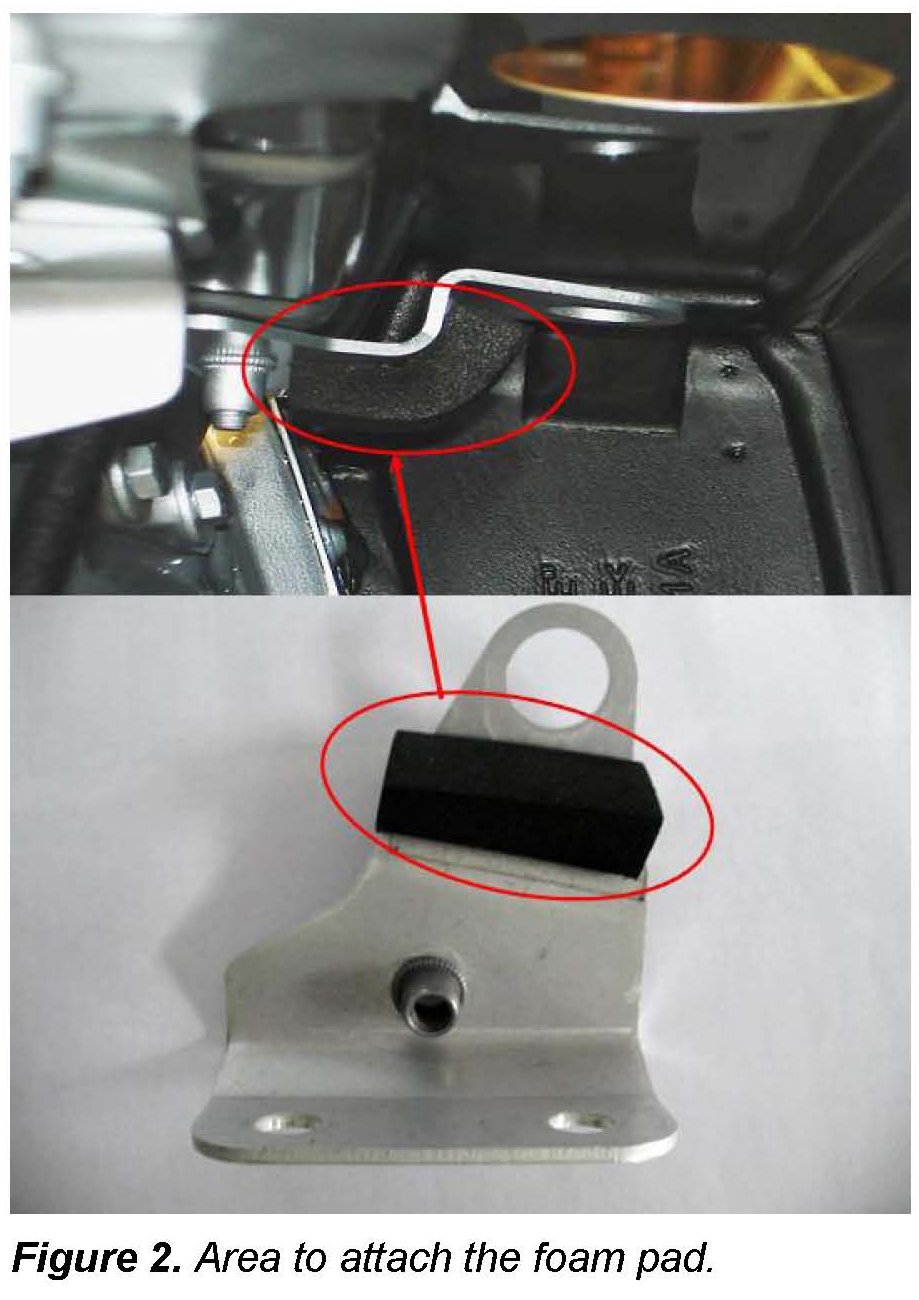

If there is free play in the mounting bracket, attach the self-adhesive foam pad 8E5868739 on the mounting bracket as shown in the illustration (Figure 2).

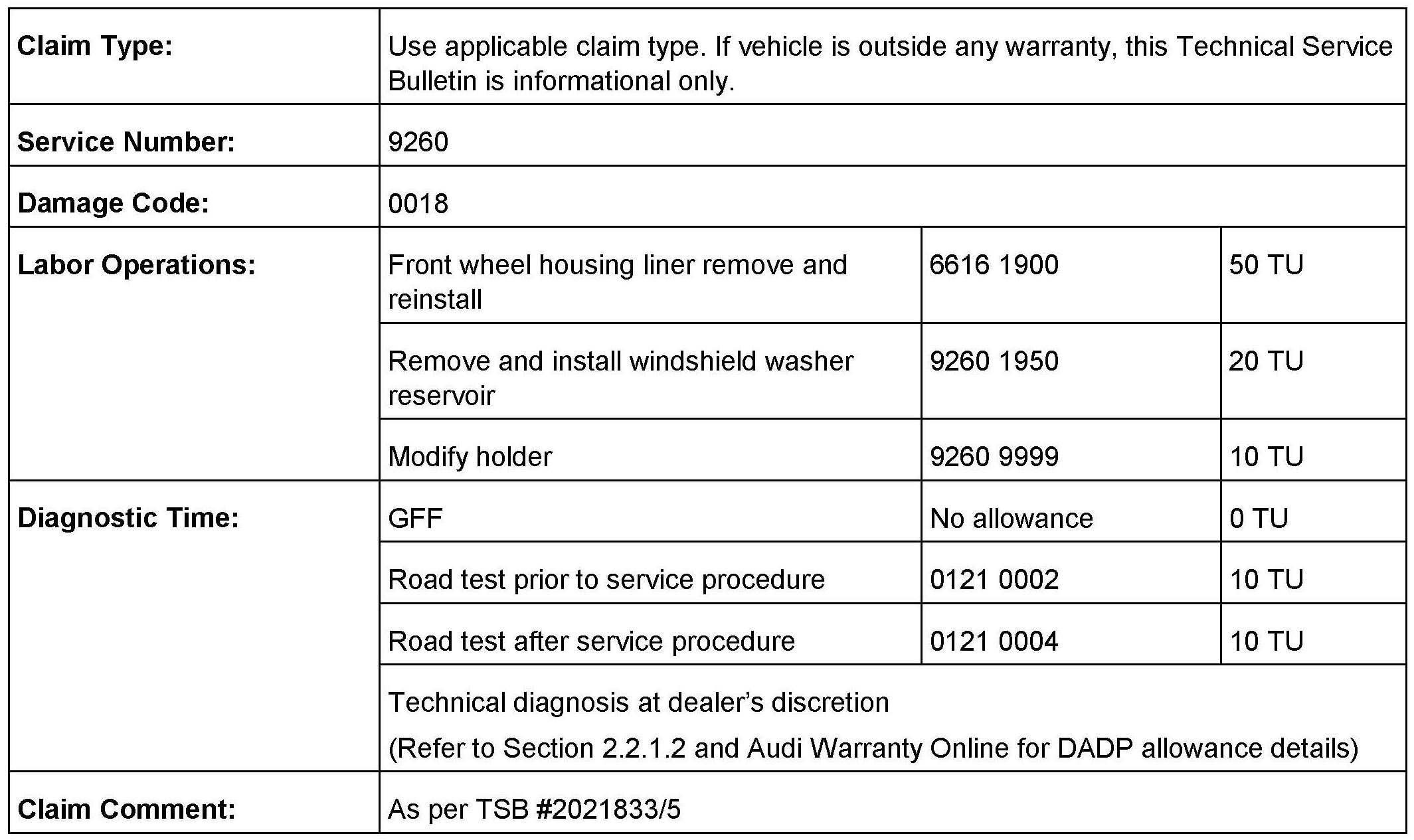

Warranty

All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

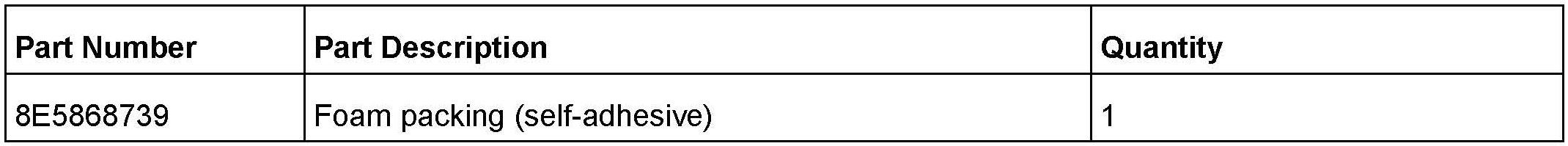

Required Parts and Tools

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
