Timing Chain Tensioner: Service and Repair

Chain Tensioner, Tensioning

- Tension the piston by hand - arrow -.

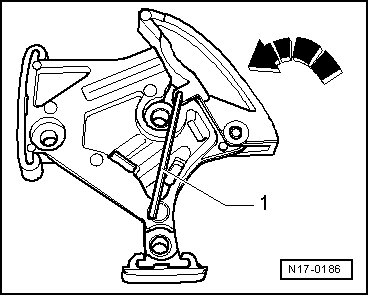

- Push the chain rail in direction of - arrow - and secure it with an Allen wrench - 1 -, wrench diameter 3 mm.
