Engine - Oil Filter Cartridge Replacement

17 Engine oil service - filter cartridge replacement

17 13 38

2012913/5

March 27, 2013

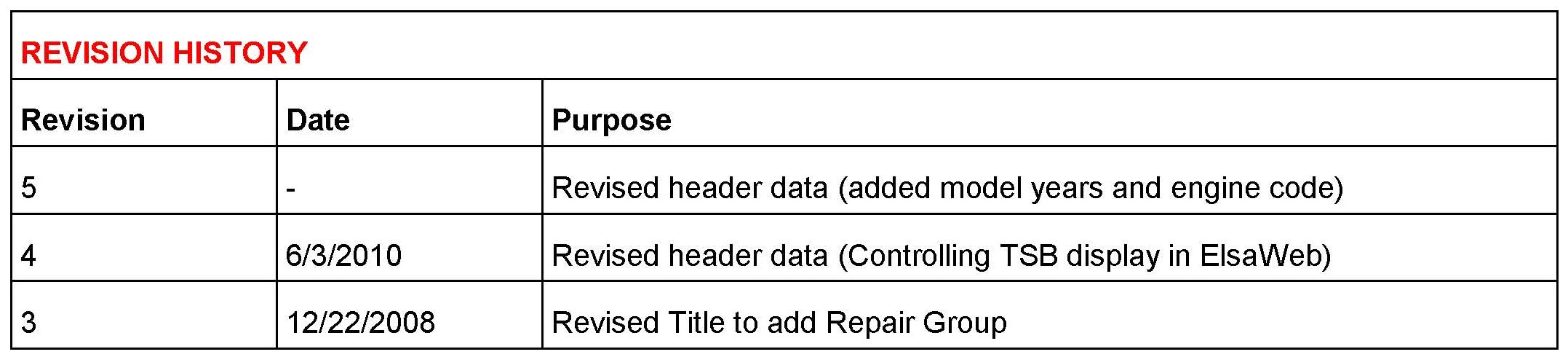

Supersedes Technical Service Bulletin Group 17 number 10-07 dated June 3, 2010 for reasons listed below.

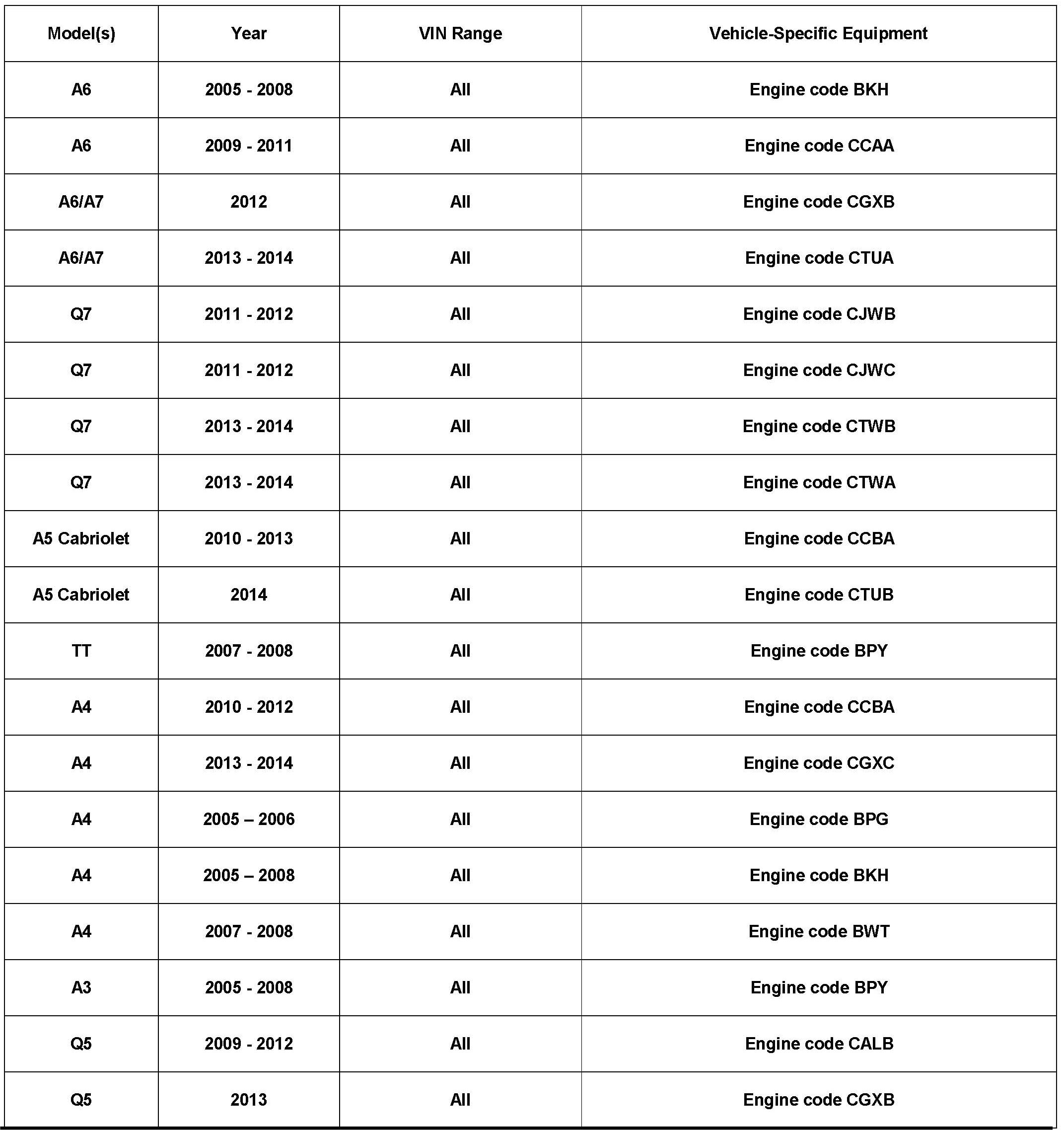

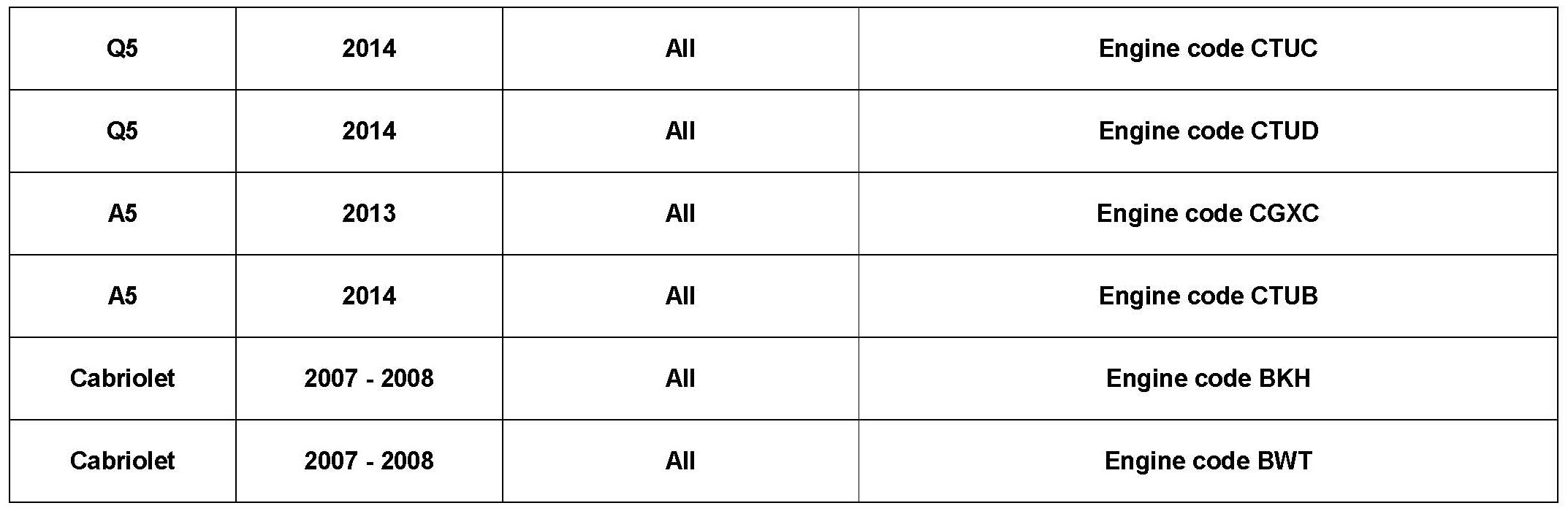

Vehicle Information





Condition

Oil filter cartridge requires replacement.

Technical Background

Not applicable.

Production Solution

Not applicable.

Service

When changing the oil filter and installing the new filter seal(s) in the oil filter housing, special attention is required.

Note:
Be aware that this seal can be installed inside-out, which must be avoided to prevent oil leaks.

1. Before installing new oil seal(s), remove old seal(s) and ensure that the filter cover seal groove is clear of any debris.





2. Lubricate the surface of the new seal (Figure 1). Do not use any sharp tool to install the gasket.

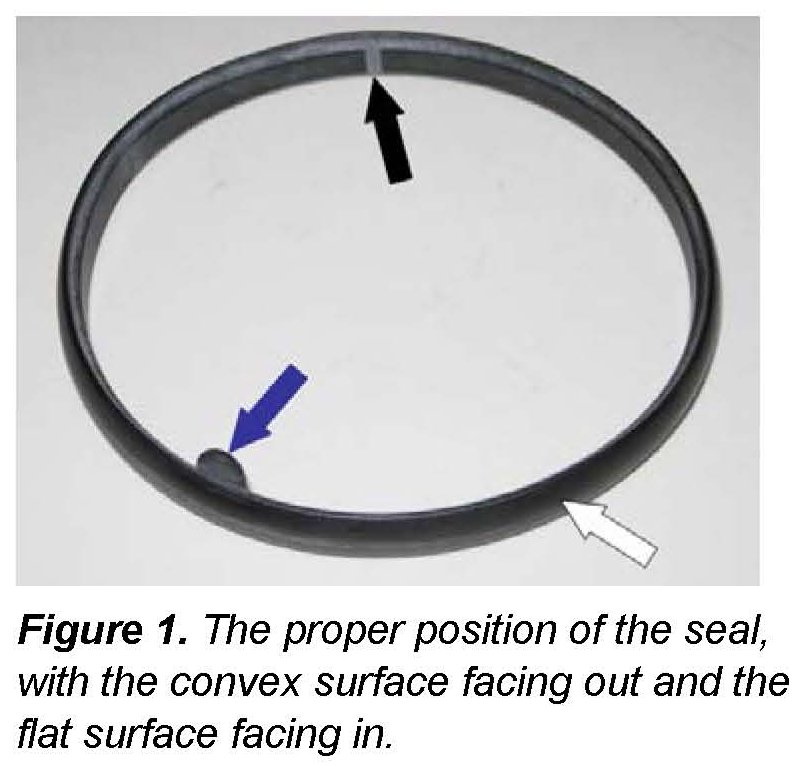

3. Install the seal with the convex surface of the seal (Figure 1, white arrow) facing out and the flat surface of the seal with the vertical slot (Figure 1, black arrow) in. The "half-moon" tab (Figure 1, blue arrow) must be visible when the seal is installed in the groove.

3.0T and 3.2FSI engines only:

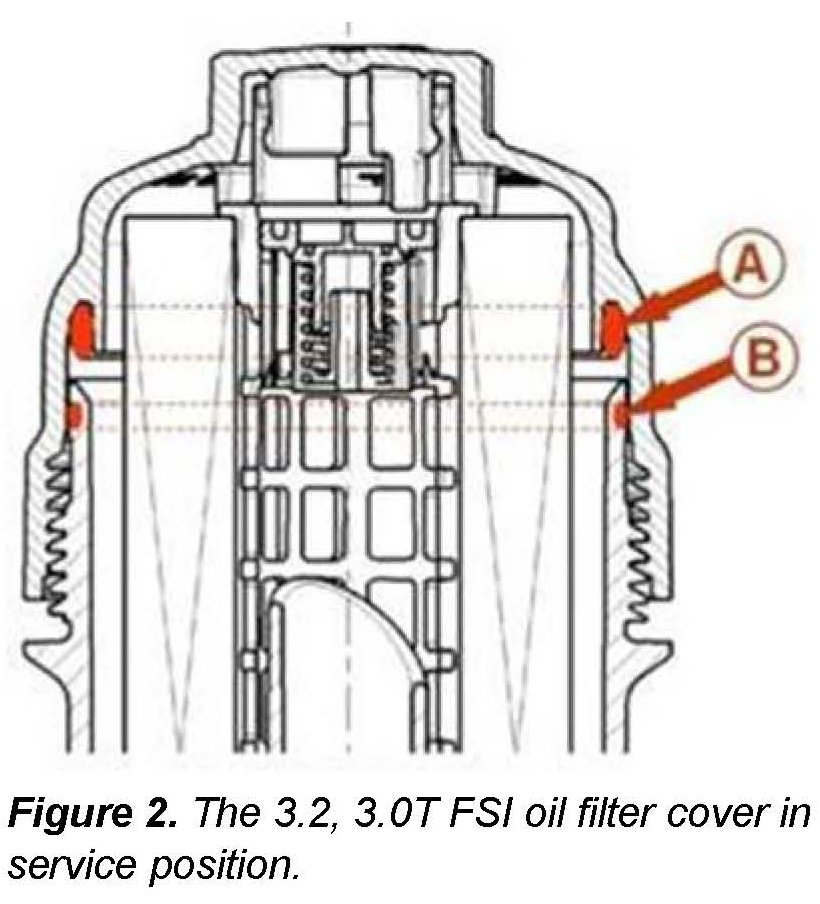

1. An additional O-Ring (Figure 2, B) is used in the 3.2 FSI oil filter housing. Place the O-Ring (Figure 2, B) in the groove of the oil filter bracket before installing the oil filter housing.

2. After properly inserting the new cartridge into the housing, torque the assembly to 25Nm.

Warranty

This TSB is informational only and not applicable to any Audi warranty.

Additional Information

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.
