After-Run Coolant Pump: Service and Repair

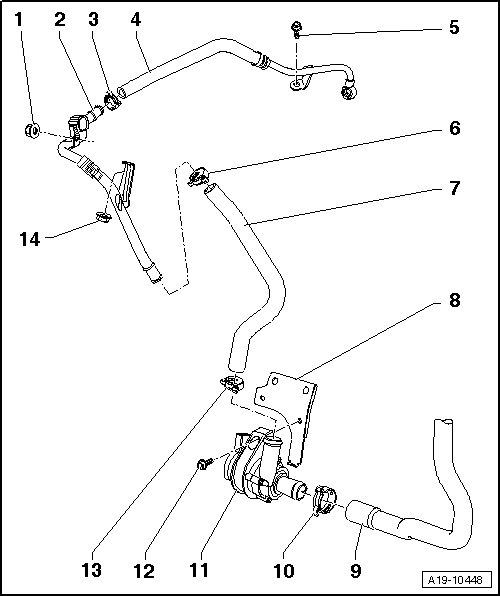

After-Run Coolant Pump Overview






1 Nut

• 3 Nm

2 Coolant Pipe

3 Spring-Type Clip

4 Coolant Pipe

• To turbocharger

5 Bolt

• 5 Nm

6 Spring-Type Clip

7 Coolant Hose

8 Bracket

9 Coolant Hose

• To radiator input

10 Spring-Type Clip

11 After-Run Coolant Pump (V51)

12 Bolt

• 5 Nm

13 Spring-Type Clip

14 Nut

• 5 Nm
