Rear Convertible Top Cover

Rear Convertible Top Cover

Removing

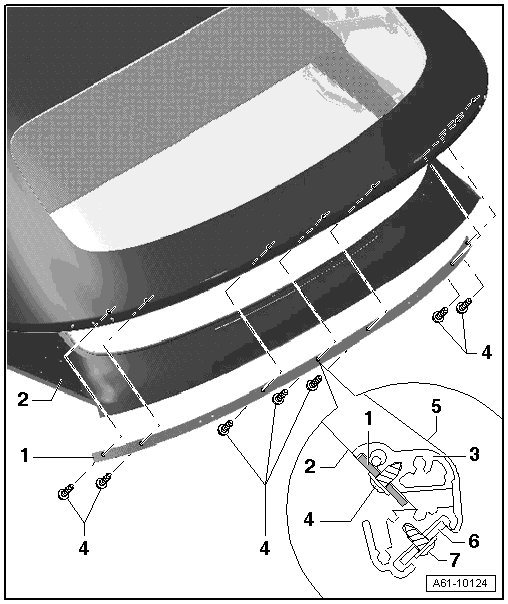

1 Retaining strip

• No replacement part, part of the convertible top headliner delivery package.

2 Convertible top headliner

• Removed

3 Bracket

• Disengage convertible top cover assembly bracket on convertible top frame.

4 Bolt

• 2.5 Nm

5 Convertible top cover

•

• Drill out rivet heads on the angle bracket and pull out the main guide with cover.

• Remove bolts on retaining strip - 6 - and remove from convertible top frame.

6 Retaining strip

• No replacement part, part of the convertible top cover delivery package.

7 Bolt

• 3 Nm

Installing

- Install in reverse order of removal.
