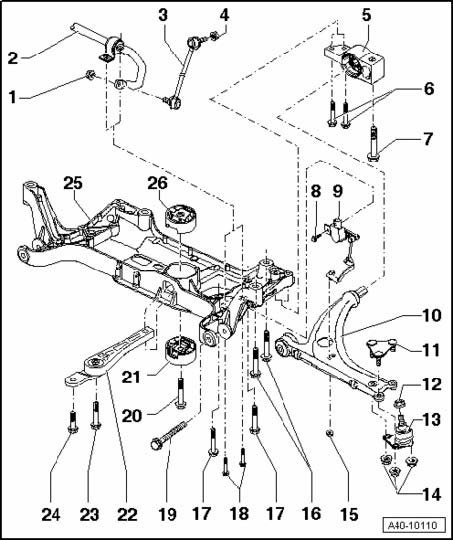

Subframe, Stabilizer Bar, Transverse Link, Ball Joint, Level Control System Sensor, Assembly Overview

Subframe, stabilizer bar, transverse link, ball joint, level control system sensor, assembly overview
1. Nut
^ 65 Nm
^ Counter hold at socket head of joint bolt when tightening
^ Always replace after removal
2. Stabilizer bar
3. Coupling rod
^ Linking stabilizer to suspension strut
4. Nut
^ 65 Nm
^ Counter hold at socket head of joint bolt when tightening
^ Always replace after removal
5. Mounting bracket
6. Bolt
^ 50 Nm plus an additional 1/4 turn (90 degrees)
^ Always replace after removal
7. Bolt
^ 70 Nm plus an additional 1/4 turn (90 degrees)
^ Always replace after removal
8. Bolt
^ 9 Nm
9. Left Front Level Control System Sensor G78 and Right Front Level Control
10. Transverse link
11. Locking element
^ Always replace after removal
12. Nut
^ 20 Nm plus an additional 1/4 turn (90 degrees)
^ Always replace after removal
13. Ball joint
14. Nut
^ 40 Nm plus an additional 1/8 turn (45 degrees)
^ Always replace after removal
15. Nut
^ 9 Nm
16. Bolt
^ 70 Nm plus an additional 1/4 turn (90 degrees)
^ Always replace after removal
17. Bolt
^ 50 Nm plus an additional 1/4 turn (90 degrees)
^ Threaded connection on steering gear
^ Always replace after removal
18. Bolt
^ 20 Nm plus an additional 1/4 turn (90 degrees)
^ Threaded connection on stabilizer bar
^ Always replace after removal
19. Bolt
^ 70 Nm plus an additional 1/2 turn (180 degrees)
^ Always replace after removal
^ Only tighten in curb weight position
20. Bolt
^ 100 Nm plus an additional 1/4 turn (90 degrees)
^ Only tighten if pendulum support is bolted to transmission
^ Always replace after removal
21. Lower bonded rubber bushing for pendulum support
22. Pendulum support
23. Bolt
^ 40 Nm plus an additional 1/4 turn (90 degrees)
^ Always replace after removal
24. Bolt
^ 40 Nm plus an additional 1/4 turn (90 degrees)
^ Always replace after removal
25. Subframe
26. Upper bonded rubber bushing for pendulum support
