Front Subframe Mount: Testing and Inspection

Subframe Mount, Checking Adjustment

Procedure

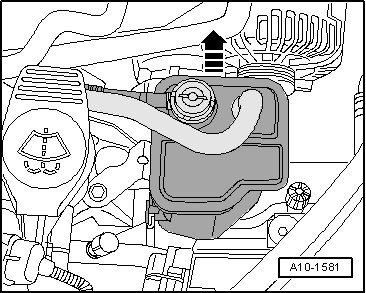

- Pull the Evaporative Emission (EVAP) canister with connected lines upward in direction of - arrow - out of the retainer and lay it aside.

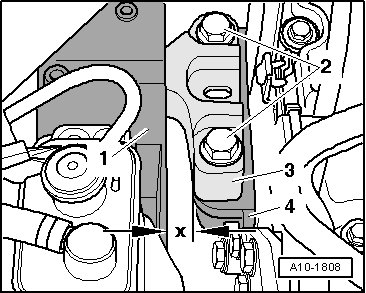

- Check dimensions on right mount for engine and transmission:






• Both bolt heads - 2 - must be parallel to edge of engine mount support arm - 3 -.

• A distance of - x - = 16 mm must be present between engine mount - 1 - and engine support - 4 -.

• Distance - x - = 16 mm can also be checked with corresponding round stock.

- If distance is too small or too large, subframe mount must be adjusted. Refer to => [ Subframe Mount, Adjusting ] Adjustments.
