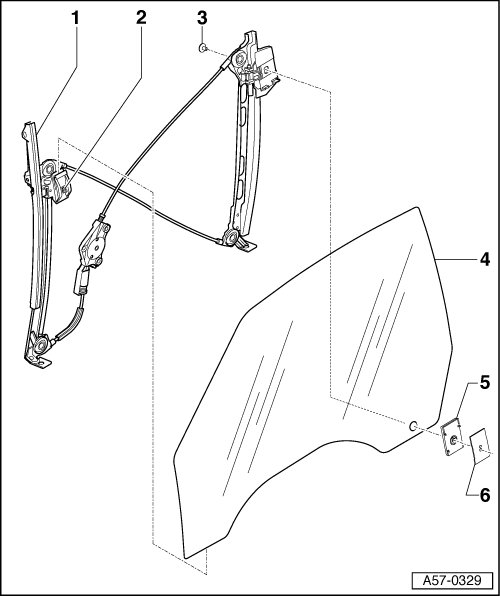

Door Window Assembly Overview

Door Window Assembly Overview





1 Window regulator

• Must not be removed when door window is removed.

• Basic setting => [ Window Regulator Basic Setting ] Testing and Inspection.

2 Clamping brackets

• With attached bolt.

• 6 Nm

3 Locking screw

• 6 Nm

4 Door window

• Removing => [ Door Window ] Door Window.

• Adjusting => [ Door Window, Adjusting ] Door Window, Adjusting.

5 Fastener

6 Pressure plate
