Transmission Oil Level, Checking

Transmission oil level, checking - 6 Spd. Manual Transmission 02X All Wheel Drive

Special tools, testers and auxiliary items required





^ Torque wrench V.A.G 1331

Note:
^ The vehicle must be horizontal when checking gear oil level.





- To check gear oil level, remove oil filler plug - arrow -.





The oil level is correct when transmission is filled up to edge of housing - arrow -.

- Top off with gear oil if necessary.

- Install oil filler plug and tighten.





Note the following when filling with new oil:

- Remove oil filler plug - arrow -.





- Fill with gear oil up to edge of housing - arrow -.
- Install oil filler plug.
- Start engine, engage a gear and allow transmission to turn for approx. 2 minutes.
- Switch off engine and remove oil filler plug.
- Once more, fill with gear oil up to edge of housing - arrow -.
- Install oil filler plug and tighten.

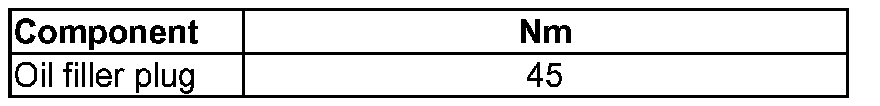

Tightening torque
