Input Shaft, Pinion/Hollow Shaft, Reverse Drive Gear and Reverse Gear Wheel Assembly Overview

Input Shaft, Pinion/Hollow Shaft, Reverse Drive Gear and Reverse Gear Wheel Assembly Overview

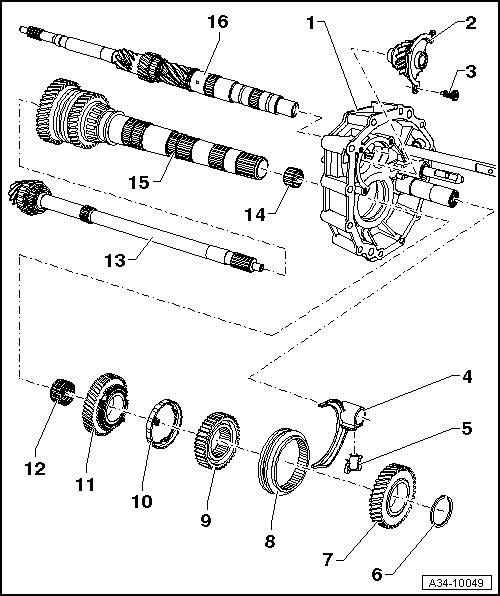

1 Bearing housing

2 Reverse drive gear

• With support/reverse shaft

• Reverse Gear Assembling Overview, refer to => [ Reverse Gear Assembling Overview ] Reverse Gear Assembling Overview

3 Bolt, 30 Nm

• Quantity: 3

4 Reverse gear shift fork

5 Dowel pin with clamp

• For mounting the reverse gear shift yoke to the selector rod

6 Securing ring

• Install the thickest circlip that can just still be installed

• Determine thickness, refer to => [ Transmission, Assembly Sequence ] Transmission, Assembly Sequence

7 3rd gear wheel

• Installation position: the sanded side face the reverse gear synchronizer hub

8 Locking collar for reverse gear

• Mark the installation position of the synchronizer hub before removing

• Installation position: the cone faces the reverse gear synchronizer ring

9 Synchronizer hub for reverse gear

• Installation position: High inner collar faces 3rd gear drive gear

10 Reverse gear synchronizer ring

• Checking for wear, refer to => [ Checking synchronizer ring for wear ] Pinion Shaft and Hollow Shaft Assembly Overview

11 Reverse gear wheel

• Insert spring before installing, refer to => [ Inserting spring into selector gear ] Pinion Shaft and Hollow Shaft Assembly Overview

• Check the axial play with a Feeler Gauge (0.20 to 0.50 mm) after installing

12 Needle bearing

• For reverse gear

13 Pinion

• With inner race/double tapered roller bearing and needle bearing

• Disassembling and assembling, refer to => [ Pinion Shaft and Hollow Shaft Assembly Overview ] Pinion Shaft and Hollow Shaft Assembly Overview

14 Needle bearing

• For pinion/hollow shaft

• Remove from the hollow shaft before pulling out the pinion

15 Hollow shaft

• With selector gears for 1st and 2nd gear

• Disassembling and assembling, refer to => [ Hollow shaft, disassembling and assembling ] Hollow shaft, disassembling and assembling

16 Input Shaft

• Disassembling and assembling, refer to => [ Input Shaft Assembly Overview ] Input Shaft Assembly Overview
